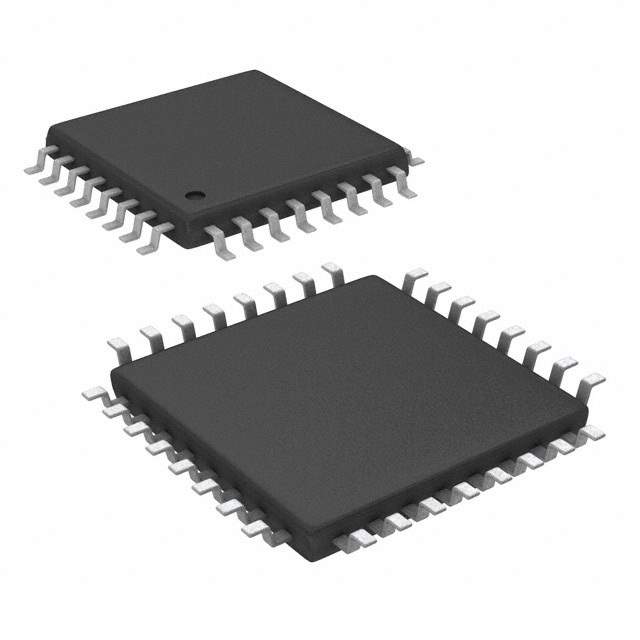

ADS1192IPBSR

Part No ADS1192IPBSR
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog Front End (AFE)
Description Low-Power, 2-Channel, 16-Bit Analog Front-End for Biopotential Measurements
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Packaging Reel - TR
Resolution 16
Number of Channels 2
Power (Watts) 740μW
Operating Supply Voltage 2.7 V ~ 5.25 V
Voltage - Supply, Digital 1.7 V ~ 3.6 V
Package 32-TQFP
Manufacturer Package 32-TQFP (5x5)
Win Source Part Number 1141606-ADS1192IPBSR
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name ADS1192
Introduction Date October 01, 2011
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian ADS1192IPBSR CAD Model

Description

Introducing the ADS1192IPBSR from Texas Instruments

The ADS1192IPBSR is a state-of-the-art, low-power, dual-channel analog-to-digital converter (ADC) designed by Texas Instruments, specifically tailored for biomedical signal acquisition applications such as electrocardiograms (ECG) and electroencephalograms (EEG). This high-performance device offers a complete front-end solution for these types of measurements, with a focus on providing high-quality data conversion while maintaining power efficiency.

Key Features and Benefits

  • Integrated Features: The ADS1192IPBSR integrates a low-noise programmable gain amplifier (PGA), a digital filter, and a high-resolution ADC in a single chip, simplifying the design and reducing the system's overall footprint.
  • High Resolution: With 16-bit resolution and a data rate up to 8k samples per second, this ADC ensures precise readings, making it ideal for monitoring and analyzing small signal variations in biomedical applications.
  • Low Power Consumption: Designed for battery-powered devices, the ADS1192IPBSR operates on a supply range from 2.7V to 5.25V and features a power-saving mode, which is essential for portable medical devices.
  • Flexible Input Configuration: The device supports various input configurations, including differential or single-ended inputs, allowing for versatile connection to different types of sensors.
  • Lead-Off Detection: It includes a lead-off detection functionality that is critical for ensuring reliable electrode connections in ECG and EEG monitoring systems.
  • CMRR (Common Mode Rejection Ratio): The ADS1192IPBSR boasts an exceptional CMRR, which is crucial for minimizing noise and interference in challenging electrical environments.

Applications

The ADS1192IPBSR is ideal for a range of medical applications, including:

  • Portable and wearable medical devices
  • Biomedical signal acquisition systems
  • Remote patient monitoring equipment
  • Fitness and activity heart rate monitors

As a product from Texas Instruments, a leader in semiconductor solutions, the ADS1192IPBSR is backed by a comprehensive support infrastructure, including development tools, reference designs, and technical documentation, making it easier for engineers to integrate this ADC into their designs and bring their medical applications to market faster.

With its combination of performance, integration, and efficiency, the ADS1192IPBSR is an excellent choice for medical device manufacturers looking to enhance the capability and reliability of their products.
