BMM150

Part No BMM150
Manufacturer Bosch Sensortec
Catalog Magnetic Sensors - Linear, Compass (ICs)
Description SENSOR FLIPCORE/HALL SPI 12WLCSP / Geomagnetic Sensor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bosch Sensortec
Packaging Reel
Technology FlipCore, Hall Effect
Axis X, Y, Z
Output Type SPI
Sensing Range ±1.3mT (X,Y), ±2.5mT (Z)
Supply Voltage (V) 1.2V ~ 3.6V
Current - Supply (Maximum) 20mA
Resolution 13 b
Bandwidth 10Hz
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 12-XFBGA, WLCSP
Supplier Device Package 12-WLCSP (1.56x1.56)
Mounting Style Surface Mount
Manufacturer Pack Quantity 10,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800821-BMM150
Ultra Librarian 3D Model Ultra Librarian BMM150 CAD Model

Description

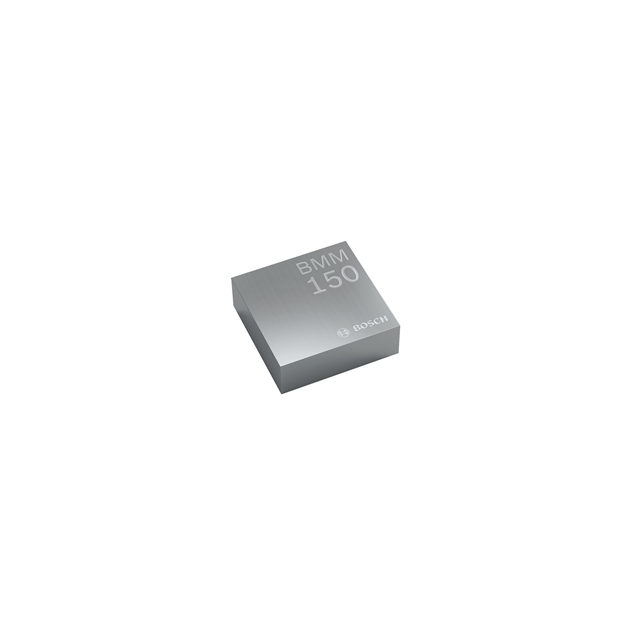

The BMM150 is a low-power, low-noise 3-axis digital geomagnetic sensor from Bosch Sensortec. It is designed for use in compass applications, and is especially suited for supporting drones in accurate heading.

The BMM150 is based on Bosch's proprietary FlipCoreTM technology, which provides high accuracy and dynamics. It is also very small and lightweight, with a footprint of only 1.56 x 1.56 mm² and a height of 0.60 mm. This makes it ideal for use in mobile devices and other space-constrained applications.

The BMM150 has a number of features that make it well-suited for compass applications. It has a wide operating range of -40°C to +85°C, and can measure magnetic fields of up to 1.3 Gauss. It also has a low power consumption, making it ideal for battery-powered devices.

The BMM150 can be used with an inertial measurement unit (IMU) consisting of a 3-axis accelerometer and a 3-axis gyroscope to provide absolute spatial orientation and motion vectors with high accuracy and dynamics. This makes it ideal for use in drones, robots, and other applications where precise navigation is required.

Here are some of the key features and benefits of the BMM150:

  • Low power consumption
  • Low noise
  • High accuracy and dynamics
  • Wide operating range
  • Small size and lightweight
  • Easy to use

The BMM150 is a versatile sensor that can be used in a wide range of applications, including:

  • Compass applications
  • Drone navigation
  • Robot navigation
  • Indoor navigation
  • Augmented reality (AR) and virtual reality (VR)
  • Head orientation
  • Magnetic compass
  • High-end gaming
  • Dead reckoning

Here are some examples of how the BMM150 is being used in the real world:

  • The BMM150 is used in the DJI Phantom 4 drone to provide accurate heading information.
  • The BMM150 is used in the Samsung Gear VR headset to track the user's head orientation.
  • The BMM150 is used in the Google Tango augmented reality platform to provide indoor navigation without the need for GPS.

Overall, the BMM150 is a high-performance 3-axis digital geomagnetic sensor that is well-suited for a wide range of applications. It is low power, low noise, and accurate, and it is available in a small and lightweight package.
