Products specifications Report Issue?

Category RF and Wireless - RF Misc ICs and Modules
Mfr ON Semiconductor
Package Tape & Reel
Product Status Obsolete
Function Quadrature Detector
RF Type FM
Mounting Type Surface Mount

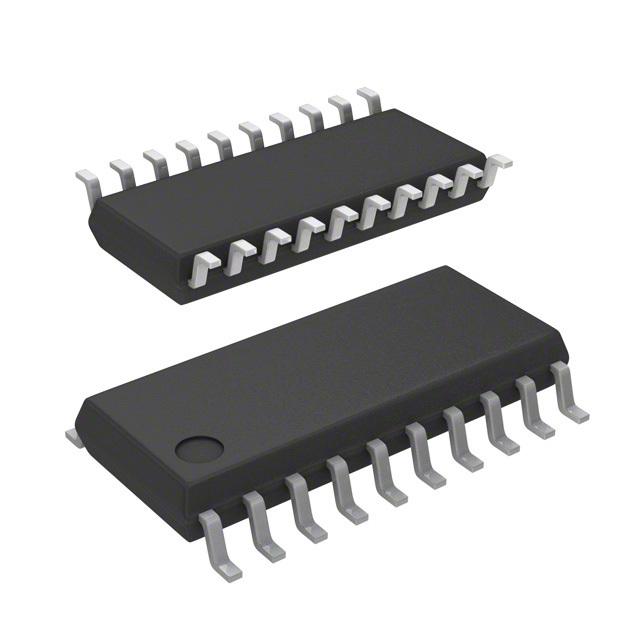

Package / Case 20-SOIC (0.213", 5.40mm Width)
Supplier Device Package 20-MFP
Base Product Number LA1145
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 173775-LA1145M-TLM-E
Ultra Librarian 3D Model Ultra Librarian LA1145M-TLM-E CAD Model

Description

ON Semiconductor LA1145M-TLM-E: High-Performance AM/FM Tuner IC

The LA1145M-TLM-E is a state-of-the-art integrated circuit designed and manufactured by ON Semiconductor, a leader in the semiconductor industry. This compact, high-performance tuner IC is engineered to provide exceptional AM/FM radio reception and is suitable for a wide range of applications, from automotive entertainment systems to high-fidelity home audio receivers.

Featuring an advanced design, the LA1145M-TLM-E offers excellent sensitivity and selectivity for both AM and FM bands. Its low-noise amplifiers ensure a clear and undistorted audio signal, making it an ideal choice for listeners who demand high-quality sound reproduction. The IC is also equipped with automatic frequency control (AFC) for FM, which helps to keep the radio locked onto the station frequency, thus reducing the need for manual tuning adjustments.

With its integrated voltage-controlled oscillator (VCO), the LA1145M-TLM-E simplifies circuit design and reduces external component count, leading to a more compact and cost-effective solution for manufacturers. Additionally, the IC incorporates a mute function that can be activated during frequency changes to eliminate unwanted noise, providing a seamless listening experience.

The LA1145M-TLM-E comes in a miniature package, making it suitable for space-constrained applications. Its low power consumption is a key feature, enabling it to be used in battery-powered devices without significantly impacting battery life. This tuner IC is also designed to be robust, with built-in electrostatic discharge (ESD) protection, ensuring long-term reliability even in challenging environments.

ON Semiconductor's commitment to quality is evident in the LA1145M-TLM-E, making it a top choice for designers and engineers looking to incorporate high-quality radio functionality into their products. Whether for portable audio devices, automotive infotainment systems, or home stereo equipment, the LA1145M-TLM-E delivers outstanding performance and reliability that ON Semiconductor customers have come to expect.
