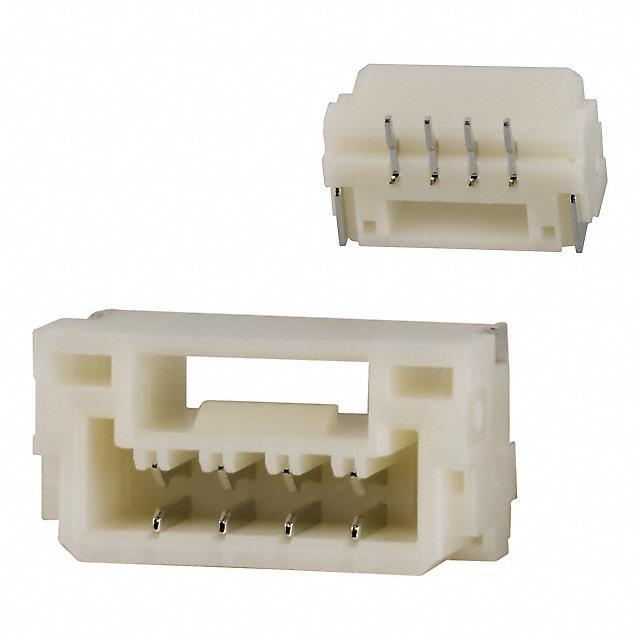

BM04B-GHS-TBT(LF)(SN)(N) JST Sales America Inc. BM04B-GHS-TBT(LF)(SN)(N) label picture BM04B-GHS-TBT(LF)(SN)(N) real image
Same model may have multiple batches, images only for reference.
BM04B-GHS-TBT(LF)(SN)(N) JST Sales America Inc. BM04B-GHS-TBT(LF)(SN)(N) label picture BM04B-GHS-TBT(LF)(SN)(N) real image
BM04B-GHS-TBT(LF)(SN)(N) JST Sales America Inc. BM04B-GHS-TBT(LF)(SN)(N) label picture BM04B-GHS-TBT(LF)(SN)(N) real image
Same model may have multiple batches, images only for reference.

BM04B-GHS-TBT(LF)(SN)(N)

Part No BM04B-GHS-TBT(LF)(SN)(N)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description CONN HEADER GH TOP 4POS 1.25MM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Outer Shroud Contact
Pitch - Mating 0.049" (1.25mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.159" (4.05mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA9T), Nylon 9T
Features Pick and Place, Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 1A
Voltage Rating 50V
Mated Stacking Heights 7.3mm
Win Source Part Number 102347-BM04B-GHS-TBT(LF)(SN)(N)
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BM04B-GHS-TBT(LF)(SN)(N) CAD Model

Description

BM04B-GHS-TBT(LF)(SN)(N): Advanced Connectivity Solution

The BM04B-GHS-TBT(LF)(SN)(N) offers an exceptional connectivity solution for modern electronic devices. This component is designed to provide stable and secure connections across a wide range of devices.

  • **Applications/Projects:**
    • Networking equipment
    • Data transmission systems
    • Home automation devices
    • Wearable technology
  • **Features and Benefits:**
    • Low insertion loss for efficient signal transmission
    • Corrosion-resistant finish for longevity
    • Compact design enabling versatile integration
    • Enhanced EMI shielding properties

Additional Details: This component conforms to industry standards for electrical safety and performance.
