The HMC649ALP6E, from Analog Devices Inc., is a high-performance, GaAs MMIC Double-Balanced Mixer with an integrated Local Oscillator (LO) Amplifier. This sophisticated component is designed for RF and microwave applications, where it delivers exceptional performance across a wide frequency range.

Key Features

• Frequency Range: The mixer operates over a broad frequency range, making it suitable for various applications in the RF and microwave spectrum.
• Integrated LO Amplifier: The built-in LO amplifier simplifies the design process by reducing the number of external components required, thus saving space and cost.
• High Isolation: The HMC649ALP6E offers excellent LO to RF and LO to IF isolation, minimizing crosstalk and improving overall system performance.
• Double-Balanced Mixer: The double-balanced architecture provides improved linearity and noise performance compared to single-balanced designs.

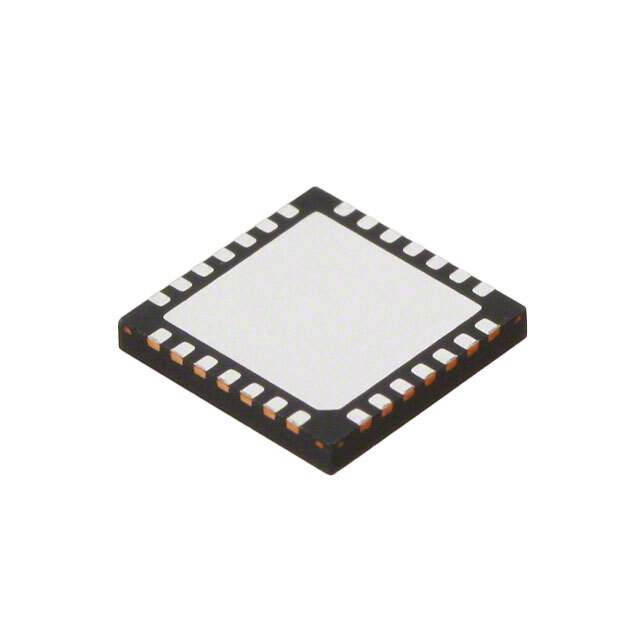

• Surface-Mount Package: Packaged in a compact 6x6mm QFN package, the HMC649ALP6E is designed for easy integration into a variety of systems.

Applications

The versatility of the HMC649ALP6E makes it an ideal choice for multiple applications, including:

• Point-to-point and point-to-multipoint radios
• Military and space
• Test equipment and sensors
• Satellite communications systems
• Fiber optic applications

Technical Specifications

With its combination of performance, integration, and quality, the HMC649ALP6E from Analog Devices Inc. stands out as a superior choice for designers looking to optimize their RF and microwave systems.
