Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Purpose Quadrature Detector
RF Type FM

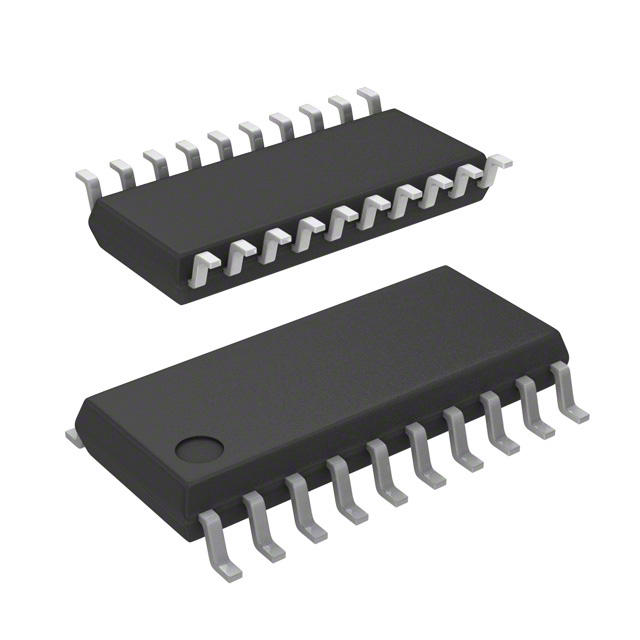

Case / Package 20-MFP
Win Source Part Number 205936-LA1145M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LA1145M CAD Model

Description

Introducing ON Semiconductor's LA1145M: The Optimal Solution for AM Radio Systems

ON Semiconductor's LA1145M stands out as a top-tier integrated circuit designed specifically for the needs of AM radio systems. This product is a testament to ON Semiconductor's commitment to providing high-quality components that enhance the performance and reliability of electronic devices. The LA1145M is an AM tuner system IC that incorporates advanced features for both car radios and home audio systems, offering a seamless and enjoyable listening experience.

Key Features of the LA1145M

  • High Sensitivity: The LA1145M boasts exceptional sensitivity, ensuring clear reception of AM signals even in areas with weak signal strength.
  • Low Noise: Designed with noise reduction in mind, this IC minimizes the background noise, allowing for a crisp and clear audio output.
  • Automatic Gain Control (AGC): With AGC, the LA1145M automatically adjusts the gain to maintain a consistent output level despite varying signal strengths.
  • Linear Variable Capacitance Diode Tuning: This feature enables precise tuning, which is essential for selecting the desired AM station without interference from adjacent channels.

Applications

The LA1145M is a versatile component suitable for a wide range of applications within the AM radio domain. It is particularly well-suited for:

  • Automotive entertainment systems
  • Portable radio units
  • Home stereo receivers
  • High-fidelity audio systems

Quality and Reliability

ON Semiconductor is renowned for its dedication to quality and the LA1145M is no exception. Manufactured with precision and subject to rigorous testing, this IC meets the highest standards of reliability. Customers can trust ON Semiconductor's LA1145M to deliver consistent performance over time, making it a smart choice for manufacturers and hobbyists alike.

Conclusion

With its robust feature set and reliable performance, the LA1145M from ON Semiconductor is the perfect building block for any AM radio system. Whether for automotive, portable, or home audio applications, this IC provides a superior listening experience by ensuring clear signal reception and user-friendly operation. Embrace the LA1145M for your next project and experience the difference in quality and performance that ON Semiconductor consistently delivers.
