Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TLV
Package Tape & Reel
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 966 mA @ 120 Hz
Ripple Current @ High Frequency 1.61 A @ 100 kHz
Impedance 75 mOhms
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.650" (16.50mm)
Surface Mount Land Size 0.512" L x 0.512" W (13.00mm x 13.00mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 150
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1337484-50TLV470M12.5X16
Ultra Librarian 3D Model Ultra Librarian 50TLV470M12.5X16 CAD Model

Description

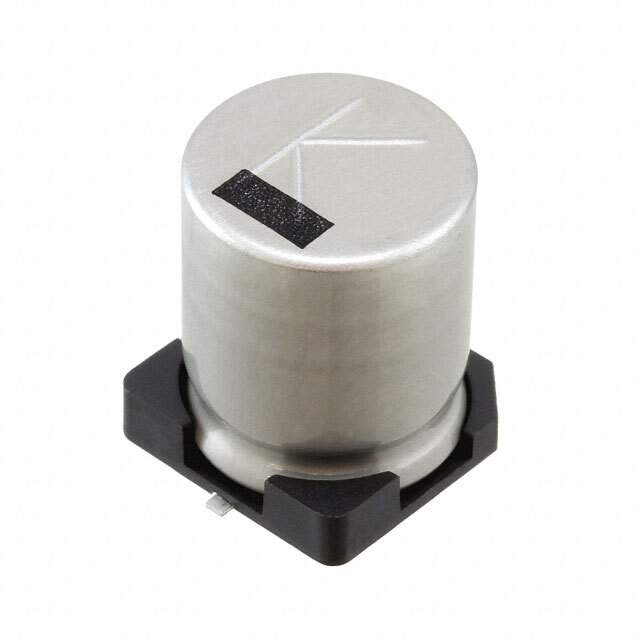

The Rubycon 1337484-50TLV470M12.5X16 is an aluminum electrolytic capacitor with a capacitance of 470 µF and a voltage rating of 50 V.

  • Series: TLV
  • Capacitance: 470 µF
  • Voltage Rating: 50 V
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Diameter: 0.492" (12.50mm)
  • Height (Seated): 0.650" (16.50mm)
  • Application: Automotive
  • Tolerance: ±20%
  • Impedance: 75 mOhms
  • ESR (Equivalent Series Resistance): -
  • Lifetime @ Temperature: 5000 hours @ 105°C
  • Operating Temperature: -55°C to 105°C
  • AEC-Q200: Yes
  • ROHS3 Compliant: Yes
