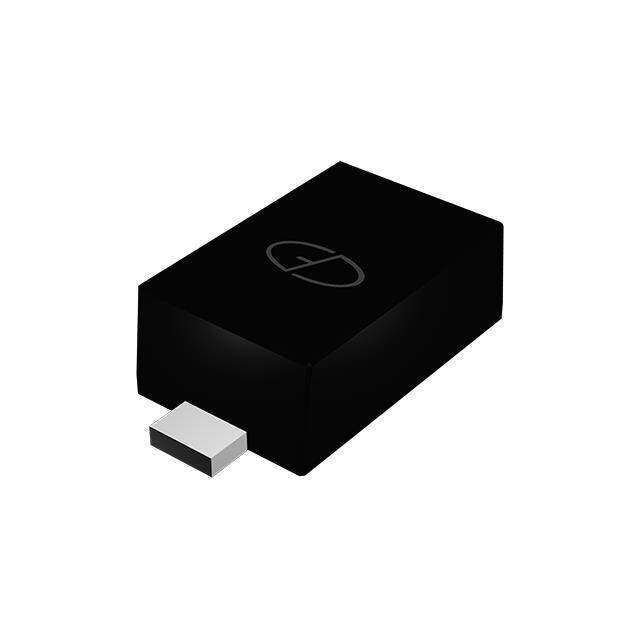

The BAS516 from NXP is a high-speed switching diode encapsulated in a ultra small and flat lead SOD523 (SC-79) Surface-Mounted Device (SMD) plastic package. It has a repetitive peak reverse voltage of 100V, an average forward current of 250mA, and a forward voltage of 1.25V at IF 150mA. It also has a low leakage current and a reverse recovery time of 4ns.

The BAS516 is ideal for a wide range of applications, including:

Power management Consumer electronics Portable devices Automotive Industrial Some specific examples of applications where the BAS516 can be used include:

Flyback diodes in switch-mode power supplies Freewheeling diodes in motor control circuits Protection diodes in battery circuits Signal diodes in high-frequency circuits Clamping diodes in overvoltage protection circuits The BAS516 is also available in an automotive grade version, the BAS516A, which is qualified to AEC-Q101 standards.

Here is a more detailed description of the key features and benefits of the BAS516:

High switching speed: The BAS516 has a reverse recovery time of just 4ns, making it ideal for high-frequency applications. Low capacitance: The BAS516 has a low capacitance of 1pF, which minimizes switching losses and improves performance in high-frequency circuits. Low leakage current: The BAS516 has a low leakage current of 500nA, which helps to conserve battery power and improve efficiency in power management applications. Reverse voltage: The BAS516 has a reverse voltage of 100V, making it suitable for a wide range of applications. Small SMD plastic package: The BAS516 is available in a small SOD523 (SC-79) SMD plastic package, which makes it ideal for space-constrained applications. Overall, the BAS516 is a versatile and high-performance switching diode that is ideal for a wide range of applications.

Here are some additional details about the BAS516:

Operating temperature range: -65°C to 150°C Non repetitive peak forward surge current: 4A Power dissipation: 500mW Package dimensions: 1.6mm x 1.0mm x 0.7mm If you are looking for a high-speed, low-leakage switching diode in a small SMD package, then the BAS516 is a great option to consider.
