The Texas Instruments TAS5634DDVR is a state-of-the-art, high-performance audio amplifier that is part of TI's PurePath™ HD technology lineup. Designed to deliver exceptional sound quality with high efficiency, the TAS5634DDVR is an ideal solution for both consumer and professional audio applications.

Key Features

• High Efficiency: With advanced closed-loop architecture, the TAS5634DDVR provides an impressive efficiency of up to 96%, ensuring minimal heat dissipation and reducing the need for bulky heat sinks.
• Power Output: This device can deliver up to 300 Watts of continuous power into a 4-ohm load, making it powerful enough for a wide range of audio applications.
• Low Distortion: It boasts an exceptionally low total harmonic distortion (THD+N) of less than 0.03%, resulting in a clear and precise audio output that satisfies audiophiles and professionals alike.
• Multiple Switching Modes: The amplifier supports both AD and BD modulation, allowing designers to choose the optimal mode for their specific application.
• Integrated Feedback: Equipped with integrated self-protection circuits, including overvoltage, undervoltage, overtemperature, DC detection, and short circuit protection, the TAS5634DDVR ensures reliable operation under various conditions.

Applications

The TAS5634DDVR is highly versatile and can be used in a variety of audio systems, such as:

• Home theater receivers
• Professional audio systems
• Active loudspeakers
• Subwoofers

Technical Specifications

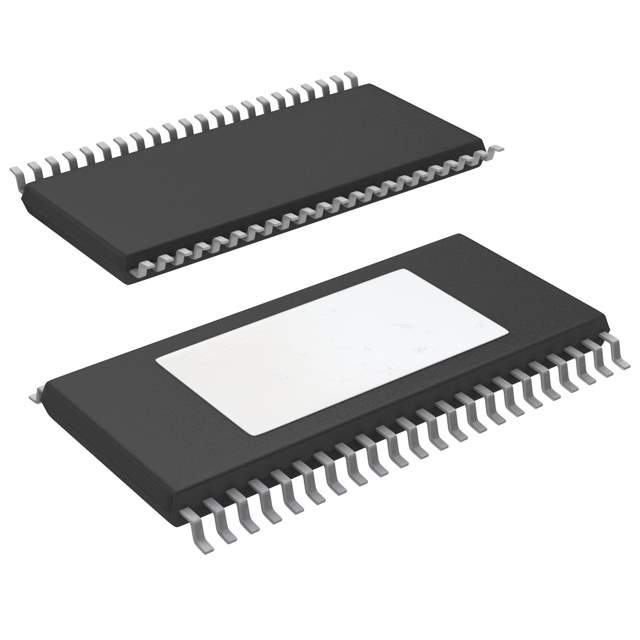

The amplifier is packaged in a 44-pin HTSSOP (DVR) package, which is optimized for thermal performance and space-saving on PCBs. It operates over a wide power supply range from 20V to 36V, making it flexible for use in different power environments.

Conclusion

With its robust design, high efficiency, and exceptional audio performance, the Texas Instruments TAS5634DDVR stands as a top choice for designers and audio enthusiasts looking for a reliable and powerful audio amplification solution.
