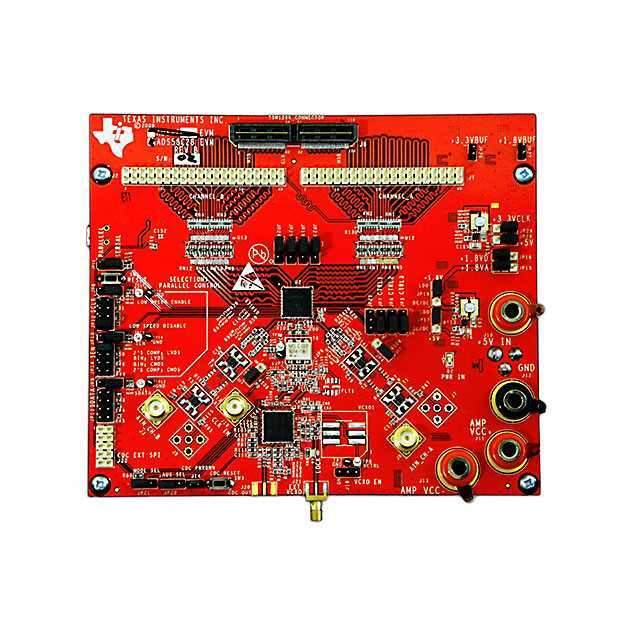

The ADS58C28EVM from Texas Instruments is a high-performance evaluation module designed to showcase the capabilities of the ADS58C28, a dual-channel, 14-bit analog-to-digital converter (ADC). This evaluation module (EVM) is an essential tool for designers and engineers who need to evaluate the performance of the ADS58C28 ADC in a variety of applications, including wireless communications, radar systems, test and measurement equipment, and medical imaging devices.
Key Features of the ADS58C28EVM
- Dual-Channel ADC: The ADS58C28EVM features two ADCs, each capable of sampling at rates up to 100 MSPS (mega-samples per second), providing the necessary bandwidth for high-speed signal processing tasks.
- High Resolution: With a 14-bit resolution, the EVM ensures precise digital representation of analog signals, enabling accurate data capture for demanding applications.
- Flexible Input Options: The EVM offers a variety of input configurations, including single-ended and differential inputs, to accommodate a wide range of signal sources.
- Integrated Features: On-board clocking and synchronization features facilitate easy integration into larger systems and ensure consistent, reliable performance.
- User-Friendly Interface: The EVM includes a graphical user interface (GUI) for straightforward control and monitoring of the ADC's functions, simplifying the evaluation process.
- Supporting Documentation: Texas Instruments provides comprehensive documentation, including schematics, layout files, and a detailed user guide, to assist users in maximizing the utility of the EVM.
Applications
The ADS58C28EVM is well-suited for a variety of applications that require high-speed and high-resolution data conversion. Its robust design and advanced features make it an ideal choice for:
- Wireless infrastructure (e.g., base stations for 3G, 4G, and 5G)
- Defense and aerospace (e.g., radar and satellite communications)
- Test and measurement equipment
- Medical imaging systems
Conclusion
The ADS58C28EVM represents a powerful tool for professionals needing to evaluate the performance of the ADS58C28 ADC. With its combination of high-speed, high-resolution sampling, and user-friendly features, this EVM from Texas Instruments is an invaluable asset for developing advanced electronic systems.
