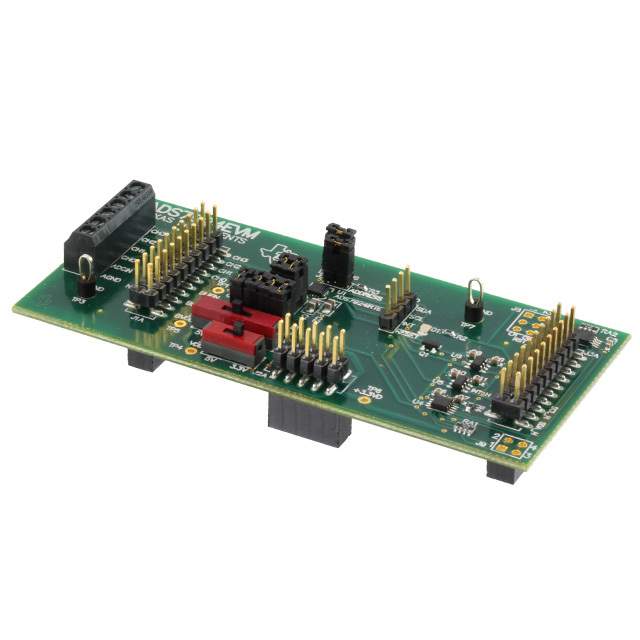

The ADS7924EVM is a compact evaluation module designed by Texas Instruments to facilitate the testing and performance analysis of the ADS7924 Integrated Circuit. The ADS7924 is a four-channel, 12-bit, low-power analog-to-digital converter (ADC) with an I2C interface, making it an ideal solution for multi-channel sensor measurement in power-sensitive applications.

Key Features of ADS7924EVM:

• Integrated ADC: The EVM includes the ADS7924 ADC, which offers four multiplexed inputs, enabling the evaluation of multiple sensors simultaneously.
• Low Power Consumption: Designed for battery-operated and power-conscious applications, the ADS7924EVM demonstrates the low power consumption of the ADC, which can operate in auto-scan or single-shot mode.
• User-Friendly Interface: The evaluation module connects to a PC via USB, allowing for easy access to the ADC's features and simplifying data collection and analysis.
• Software Support: Texas Instruments provides comprehensive software support for the ADS7924EVM, including an intuitive graphical user interface (GUI) that helps users configure the ADC and visualize the data.
• Flexible Power Options: The EVM can be powered through the USB connection or via an external power supply, offering versatility for different testing scenarios.

Applications:

The ADS7924EVM is suitable for a wide range of applications, particularly where multiple sensor measurements are required without sacrificing power efficiency. Typical applications include:

• Portable Medical Devices
• Battery-Operated Equipment
• Power Management Systems
• Industrial Monitoring and Control

What's Included:

The ADS7924EVM package includes the evaluation module itself, along with necessary software for installation on a PC. Users can quickly set up the EVM and begin testing the ADS7924 ADC in their specific application environment.

Ordering Information:

To order the ADS7924EVM or to find more information about pricing and availability, please visit the Texas Instruments website or contact an authorized distributor.
