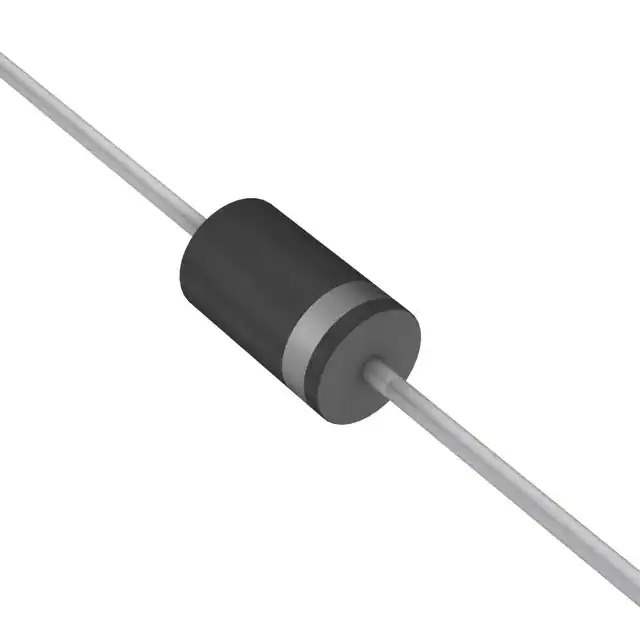

SR305 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 50 V
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package DO-201AD
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 1,250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 675914-SR305
Ultra Librarian 3D Model Ultra Librarian SR305 CAD Model

Description

The 675914-SR305 is a fast recovery schottky diode with a voltage rating of 50V and an average rectified current of 3A.

  • It: has a forward voltage of 700mV @ 3A and a reverse leakage current of 500μA @ 50V.
  • The: diode operates in a wide temperature range from -55°C to 150°C and is mounted through hole using the DO-201AD package.
  • The: 675914-SR305 is a reliable diode suitable for various applications in the field of discrete semiconductor products.
