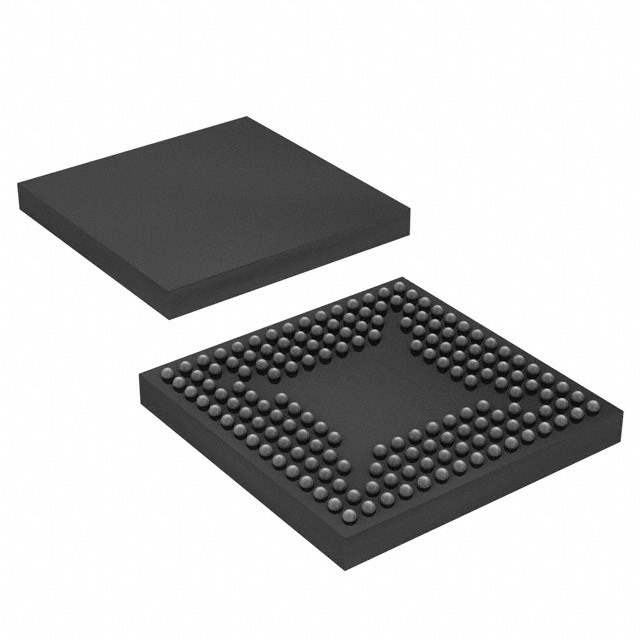

EP3C10M164C8N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Altera
Status Active
Number of LABs/CLBs 645
Number of Logic Elements/Cells 10320
Total RAM Bits 423936
Number of I/O 106
Supply Voltage - Operating 1.15 V to 1.25 V
Mounting SMD (SMT)
Temperature Range - Operating 0°C to 85°C (TJ)
Case / Package 164-MBGA (8x8)
Win Source Part Number 203755-EP3C10M164C8N
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EP3C10M164C8N CAD Model

Description

Overview

The EP3C10M164C8N FPGA is part of the Cyclone III series, designed to offer a balance of flexibility and performance for a broad range of digital circuitry projects.

Features and Benefits

  • Highly compact 164-pin MBGA package optimizing board space.
  • Moderate power consumption suitable for mobile and low-power designs.
  • A maximum count of 10,320 logic elements with 423,680 RAM bits for extended capacity in complex applications.
  • Enhanced reliability for high-performance execution.

Applications

  • Data processing modules for communication devices.
  • Smart IoT devices requiring adaptable logic solutions.
  • Signal processing in multimedia applications.
  • Accelerated computing tasks in gaming hardware.
