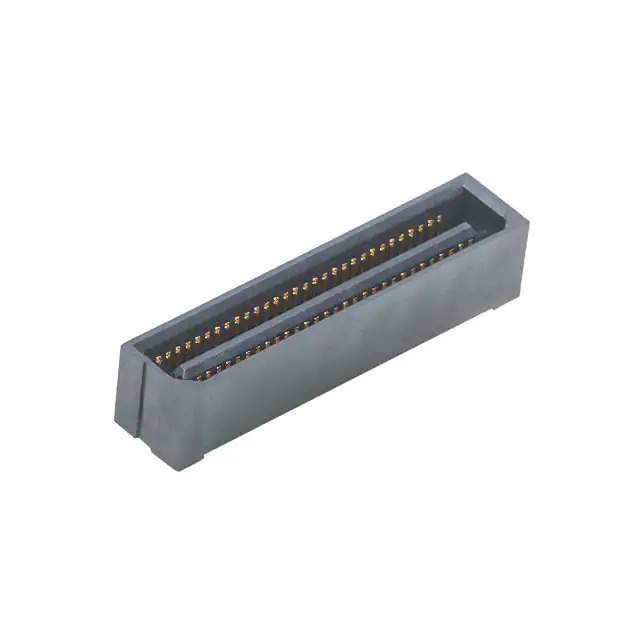

11826-BCA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Amphenol
Series Lynx
Package Tape & Reel
Product Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 120
Pitch 0.024" (0.60mm)
Number of Rows 4
Mounting Type Surface Mount
Features Board Guide, Pick and Place
Contact Finish Gold
Mated Stacking Heights 5mm
Height Above Board 0.185" (4.70mm)
Base Product Number 11826
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853769-11826-BCA
Ultra Librarian 3D Model Ultra Librarian 11826-BCA CAD Model

Description

The 853769-11826-BCA is a rectangular connector array designed for edge type, mezzanine board-to-board connections. Amphenol is the manufacturer.

  • Series: Lynx
  • Positions: 120
  • Pitch: 0.024" (0.60mm)
  • Features: Board Guide, Pick and Place
  • Connector Type: Plug
  • Contacts: Outer Shroud
  • Contact Finish: Gold
  • Mounting Type: Surface Mount
  • Height Above Board: 0.185" (4.70mm)
  • Standard Package: 1,000 pieces
