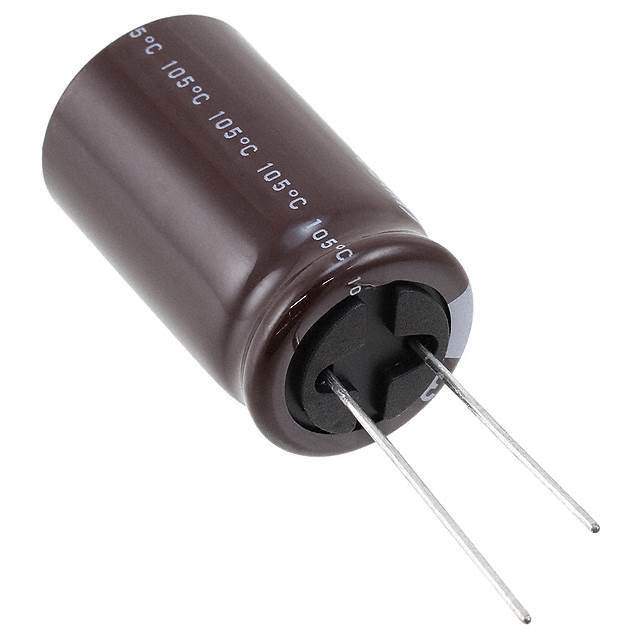

UCS2C331MHD Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCS
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 160 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.565 A @ 120 Hz
Ripple Current @ High Frequency 3.13 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.299" (33.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-5868
Standard Package 300
Win Source Part Number 1226989-UCS2C331MHD
Ultra Librarian 3D Model Ultra Librarian UCS2C331MHD CAD Model

Description

UCS2C331MHD is an aluminum electrolytic capacitor that is manufactured by Nichicon.

  • Package: Radial, Can
  • Height-Seated (Max): 1.299" (33.00mm)
  • Lead Spacing: 0.295" (7.50mm)
  • Capacitance: 330 µF
  • Voltage - Rated: 160 V
  • Tolerance: ±20%
  • Application: General Purpose
  • Dimension: 0.709" Dia (18.00mm)
  • Ripple Current @ Low Frequency: 1.565 A @ 120 Hz
  • Ripple Current @ High Frequency: 3.13 A @ 100 kHz
  • Win Source Part Number: 1226989-UCS2C331MHD
  • Package: Bulk
  • Lifetime @ Temp.: 10000 Hrs @ 105°C
  • Polarized: Yes
  • Temperature Range: -40°C ~ 105°C
  • ECCN: EAR99
  • MSL Level: Not Applicable
