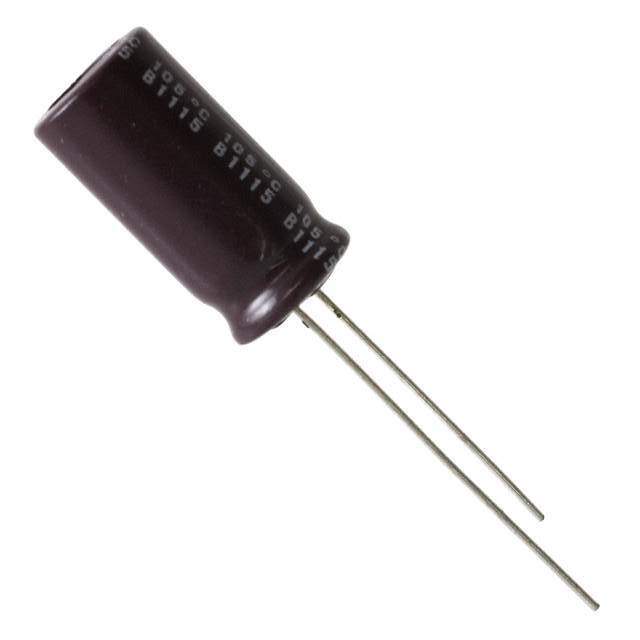

Same model may have multiple batches, images only for reference.

UPM1V331MPD1TD

Name: UPM1V331MPD1TD
Brand: Nichicon
SKU: 1228688
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UPM1V331MPD1TD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 35V RADIAL / 330 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPM
Package	Cut Tape (CT),Tape & Box (TB)
Product Status	Not For New Designs
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	810 mA @ 120 Hz
Ripple Current @ High Frequency	1.06 A @ 10 kHz
Impedance	60 mOhms
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	UPM1V331MPD1TD-ND,493-11134-3,Q7313321AA,493-11134-1
Standard Package	500
Win Source Part Number	1228688-UPM1V331MPD1TD
Ultra Librarian 3D Model	Ultra Librarian UPM1V331MPD1TD CAD Model

Description

The Nichicon UPM1V331MPD1TD is a general-purpose aluminum electrolytic capacitor that has a capacitance of 330 µF and a voltage rating of 35V.

Capacitance: 330 µF
Voltage Rating: 35V
Tolerance: ±20%
Impedance: 60 mOhms
Ripple Current: 810mA @ low frequency, 1.06A @ high frequency
Height: 0.866" (22.00mm)
Diameter: 0.394" (10.00mm)
Maximum Operating Temperature: 105°C
Lifetime: 5000 hours @ 105°C
Polarity: polarized
Package: radial, can
