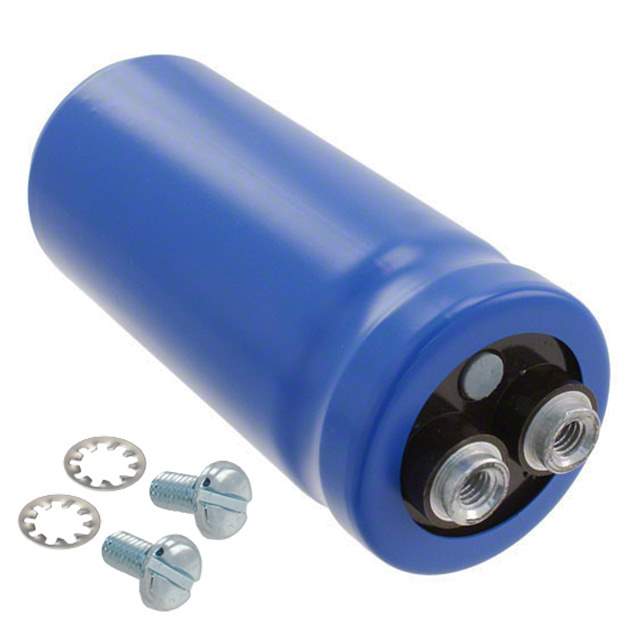

CGS243U016R3C Real Image
Same model may have multiple batches, images only for reference.

CGS243U016R3C

Part No CGS243U016R3C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 24000UF 16V SCREW / Cap Aluminum Lytic 24000uF 16V -10% to 75% (34.93 X 79.38mm) Screw Terminal 0.032 Ohm 5600mA 2000h 85°C
Datasheet
CGS243U016R3C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CGS
Packaging Bulk
Capacitance 24000μF
Tolerance -10%, +75%
Voltage Rating DC 16V
ESR (Equivalent Series Resistance) 32 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 5.6A @ 120Hz
Ripple Current - High Frequency 7.28A @ 10kHz
Lead Spacing 0.500" (12.70mm)
Dimension 1.375" Dia (34.93mm)
Height - Seated (Maximum) 3.125" (79.38mm)
Mounting Chassis Mount
Package Radial, Can - Screw Terminals
Win Source Part Number 798971-CGS243U016R3C
Popularity Medium
Supply and Demand Status Limited
Family Name CGS
Introduction Date August 30, 2005
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian CGS243U016R3C CAD Model

Description

The Cornell Dubilier Electronics CGS243U016R3C is a polarized capacitor manufactured by Cornell Dubilier Electronics.

  • Capacitance: 24000μF
  • Voltage Rating: 16V
  • Tolerance: -10%, +75%
  • ESR (Equivalent Series Resistance): 32 mOhm @ 120Hz
  • Ripple Current: 5.6A @ 120Hz, 7.28A @ 10kHz
  • Mounting Type: Chassis Mount
  • Terminal Package: Radial Can-Screw
  • Category: Capacitors
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Diameter: 1.375" (34.93mm)
  • Height: 3.125" (79.38mm)
  • Lifetime: 2000 Hrs @ 85°C
  • Application: General
  • Introduction Date: August 30, 2005
  • Manufactured In: United States of America
  • Estimated EOL Date: 2027
