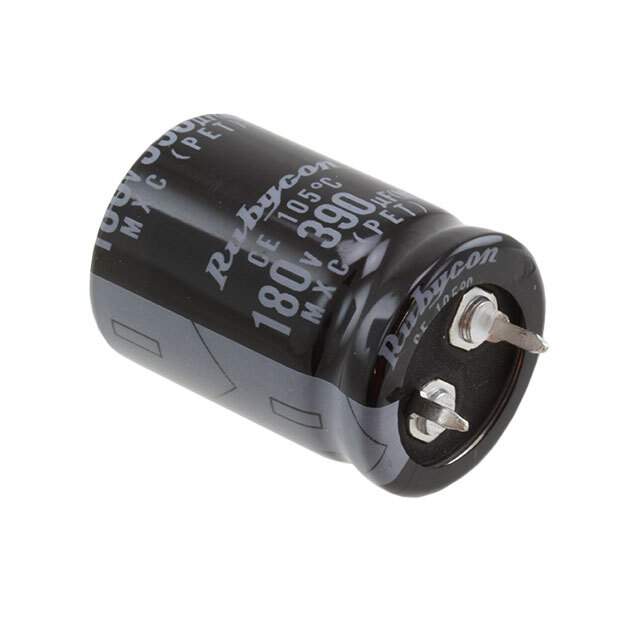

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series MXC
Packaging Bulk
Capacitance 15000μF
Tolerance ±20%
Voltage Rating DC 16V
Lifetime @ Temp. 3000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Applications General
Ripple Current - Low Frequency 2.68A @ 120Hz
Ripple Current - High Frequency 3.082A @ 10kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.866" Dia (22.00mm)
Height - Seated (Maximum) 1.457" (37.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 799541-16MXC15000MEFCSN22X35
Popularity Medium
Supply and Demand Status Limited
Family Name MXC
Introduction Date October 02, 2007
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 16MXC15000MEFCSN22X35 CAD Model

Description

The Rubycon 799541-16MXC15000MEFCSN22X35 is a bulk packaged radial, can-snap-in capacitor with a capacitance of 15000μF and a voltage rating of 16V.

  • Capacitance: 15000μF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Ripple Current @ 120Hz: 2.68A
  • Ripple Current @ 10kHz: 3.082A
  • Series: MXC
  • Lifetime @ 105°C: 3000 hours
  • ECCN: EAR99
  • Country of Origin: Japan
  • Estimated EOL Date: 2027
  • Introduction Date: October 02, 2007
