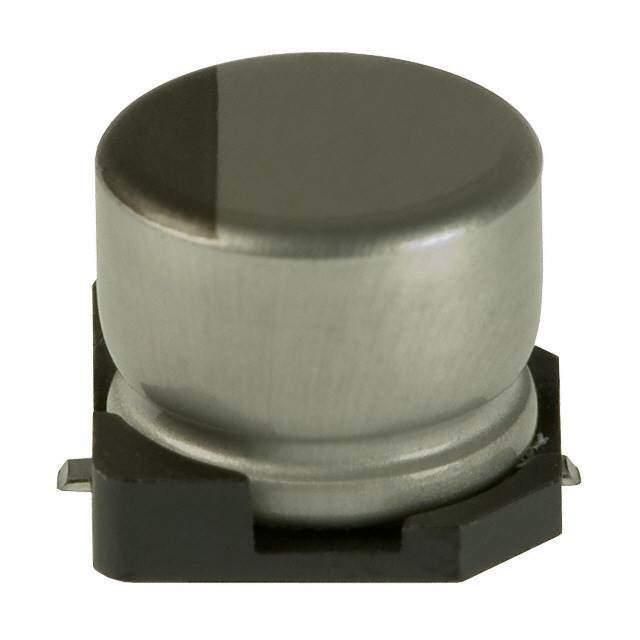

UWX0J101MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWX0J101MCL1GB

Part No UWX0J101MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 6.3V SMD / Cap Aluminum Lytic 100uF 6.3V 20% (6.3 X 5.4mm) SMD 70mA 2000h 85°C Automotive T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series UWX
Packaging Reel package
Capacitance 100μF
Tolerance ±20%
Voltage Rating DC 6.3V
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 70mA @ 120Hz
Ripple Current - High Frequency 105mA @ 10kHz
Dimension 0.248" Dia (6.30mm)
Height - Seated (Maximum) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 798946-UWX0J101MCL1GB
Popularity Medium
Supply and Demand Status Balance
Family Name UWX
ECCN EAR99
Country of Origin China, Japan, Malaysia
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian UWX0J101MCL1GB CAD Model

Description

The Nichicon UWX series capacitor is a polarized radial, can type SMD capacitor.

  • Capacitance: 100μF
  • Voltage Rating DC: 6.3V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): Not Specified
  • Ripple Current: 70mA @ 120Hz
  • Ripple Current: 105mA @ 10kHz
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Dimension: 0.248" Dia (6.30mm)
  • Lifetime: 2000 Hrs @ 85°C
  • Packaging: Reel
  • Height: 0.213" (5.40mm)
  • Series: UWX
  • Category: Capacitors
  • Manufacturer: Nichicon
  • Estimated EOL Date: 2029
  • Supply and Demand Status: Balanced
  • Alternative Parts: EMLK6R3ADA101MF61G, EMVE6R3ATR101MF80, 6.3SJV100M6.3X6.1, EEVHB0J101P
  • ECCN: EAR99
  • Country of Origin: China, Japan, Malaysia
