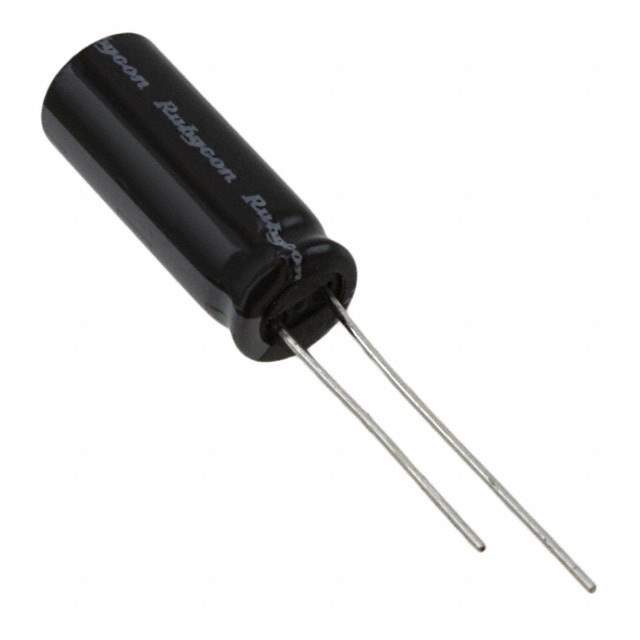

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series ZLJ
Packaging Bulk
Capacitance 68μF
Tolerance ±20%
Voltage Rating DC 100V
Lifetime @ Temp. 9000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 520mA @ 120Hz
Ripple Current - High Frequency 1.04A @ 100kHz
Impedance 160 mOhm
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.866" (22.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 799259-100ZLJ68M8X20
Popularity Medium
Supply and Demand Status Balance
Family Name ZLJ
Introduction Date September 23, 2010
ECCN EAR99
Country of Origin Japan
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 100ZLJ68M8X20 CAD Model

Description

The Rubycon 799259-100ZLJ68M8X20 capacitor is a high-quality component that is perfect for use in a wide range of electronic devices.

  • Capacitance: 68μF
  • Voltage Rating: 100V
  • Mounting: Through-hole
  • Impedance: 160 mOhm
  • ESR (Equivalent Series Resistance): -
  • Series: ZLJ
  • Ripple Current: 520mA @ 120Hz
  • Ripple Current: 1.04A @ 100kHz
