Microchip Technology's USB3300-EZK USB 2.0 Transceiver

The USB3300-EZK is a high-performance, low-power USB 2.0 transceiver chip produced by Microchip Technology, a leading provider of smart, connected, and secure embedded control solutions. This transceiver is designed to facilitate the development of USB applications by providing an interface between the USB physical layer and the USB controller or processor.

Featuring support for the High-Speed (HS) and Full-Speed (FS) data rates, the USB3300-EZK ensures compatibility with a wide range of USB devices. Its versatility makes it an ideal choice for developers working on applications such as mobile phones, digital cameras, printers, scanners, and other USB-enabled devices.

The device operates with a single 3.3V power supply and offers an integrated 1.8V regulator for the core, which helps to reduce external component requirements and simplifies the overall design process. The USB3300-EZK is equipped with an ULPI (UTMI+ Low Pin Interface), which minimizes the number of pins required to connect to a USB controller, further simplifying design and reducing costs.

Key Features:

• Support for USB 2.0 High-Speed (480 Mbps) and Full-Speed (12 Mbps) operation
• Low-power consumption for battery-powered applications
• Integrated 1.8V voltage regulator
• ULPI interface with a reduced pin count
• Support for external HS transceiver interface
• Compliant with USB 2.0 Transceiver Macrocell Interface (UTMI) and UTMI+ specifications

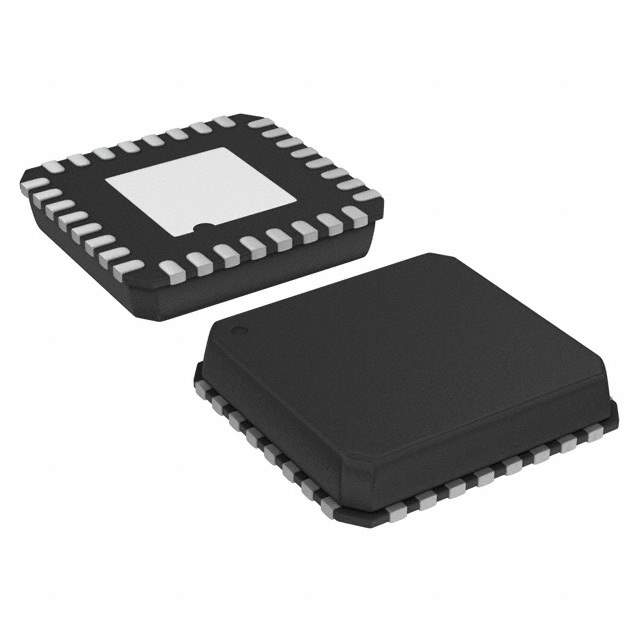

• Available in a compact 32-pin QFN package

The USB3300-EZK's compact footprint and comprehensive feature set make it an excellent choice for designers who are looking to integrate USB connectivity into their projects with minimal design overhead and maximum functionality. By choosing the USB3300-EZK, developers can rely on Microchip's reputation for quality and benefit from the company's extensive support network to bring their USB-enabled products to market efficiently and effectively.
