Same model may have multiple batches, images only for reference.

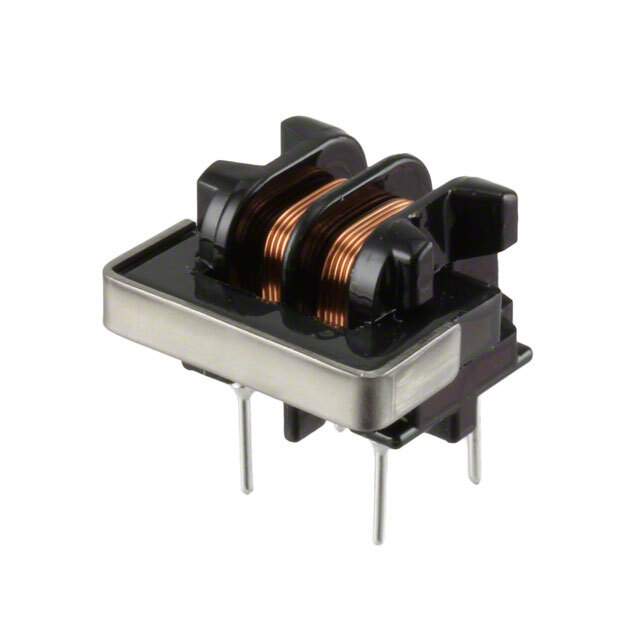

SU9H-10005 Real Image
Same model may have multiple batches, images only for reference.

SU9H-10005

Part No SU9H-10005
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 500 µH @ 1 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 300mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.492" (12.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9H
Other Names UALSU9H1000500,399-10707
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276483-SU9H-10005
Ultra Librarian 3D Model Ultra Librarian SU9H-10005 CAD Model

Description

The KEMET SU9H-10005 is a common mode choke filter that is in bulk package.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 1A
  • Number of Lines: 2
  • Inductance @ Frequency: 500 µH @ 1 kHz
  • DC Resistance (DCR): 300mOhm
  • Mounting Type: Through hole
  • Temperature Range: -25°C ~ 120°C
  • Dimension: 0.669 inches L x 0.610 inches W (17.00mm x 15.50mm)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
