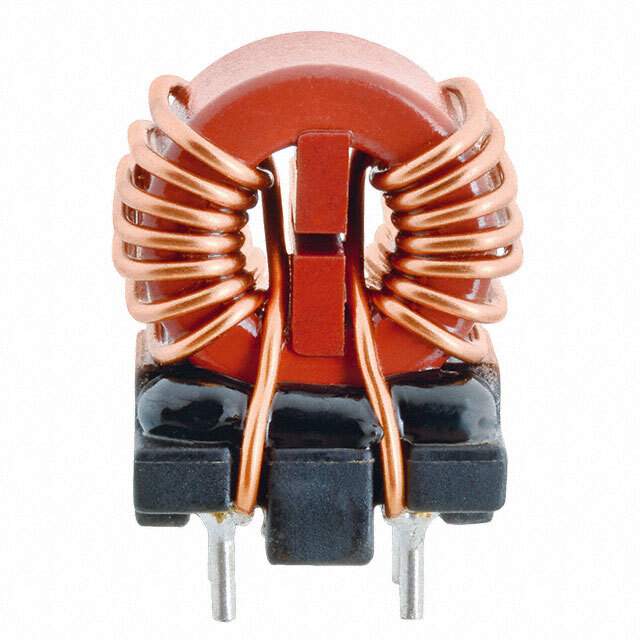

744822233 Real Image1 744822233 Real Image2
Same model may have multiple batches, images only for reference.
744822233 Real Image1 744822233 Real Image2
744822233 Real Image1 744822233 Real Image2
Same model may have multiple batches, images only for reference.

744822233

Part No 744822233
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 3.3MH 1.5A 2LN TH / 3.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 120mOhm
Datasheet
744822233 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-CMB
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.3 mH @ 10 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 120mOhm
Voltage Rating - DC -
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Ratings -
Approval Agency -
Features -
Mounting Type Through Hole
Size / Dimension 0.689" L x 0.512" W (17.50mm x 13.00mm)
Height (Max) 0.866" (22.00mm)
Package / Case Vertical, 4 PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 140 pcs
Win Source Part Number 1381127-744822233
Ultra Librarian 3D Model Ultra Librarian 744822233 CAD Model

Description

The 1381127-744822233 is a common mode choke from the WE-CMB series by Wurth Electronics Inc. It is designed for power line filtering applications.

  • Voltage Rating: 250V
  • Maximum Current Rating: 1.5A
  • Size: 0.689" L x 0.512" W
  • Height: 0.866"
  • Number of Lines: 2
  • Inductance: 3.3mH @ 10kHz
  • DC Resistance: 120mOhm
  • Mounting Type: Through Hole
  • Package: Vertical, 4 PC pin
  • Operating Temperature: -40°C to 125°C
