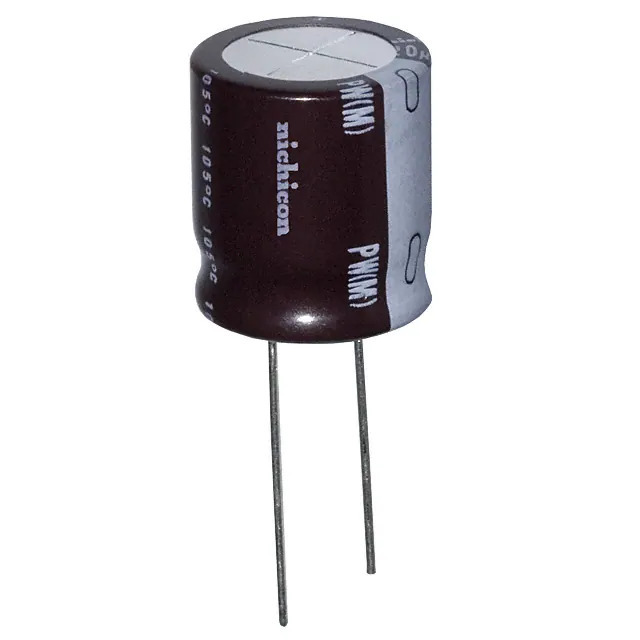

Same model may have multiple batches, images only for reference.

UPW1J471MHD3

Name: UPW1J471MHD3
Brand: Nichicon
SKU: 1358057
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UPW1J471MHD3
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 470UF 20% 63V RADIAL / 470 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Datasheet	UPW1J471MHD3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UPW
Package	Bulk
Product Status	Not For New Designs
Capacitance	470 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	8000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.328 A @ 120 Hz
Ripple Current @ High Frequency	1.77 A @ 100 kHz
Impedance	59 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.787" (20.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358057-UPW1J471MHD3
Ultra Librarian 3D Model	Ultra Librarian UPW1J471MHD3 CAD Model

Description

The UPW1J471MHD3 is an aluminum electrolytic capacitor from Nichicon's UPW series.

Capacitance: 470 µF
Voltage - Rated: 63 V
Tolerance: ±20%
Ripple Current @ Low Frequency: 1.328 A @ 120 Hz
Ripple Current @ High Frequency: 1.77 A @ 100 kHz
Lead Spacing: 0.295" (7.50mm)
Size / Dimension: 0.630" Dia (16.00mm)
Mounting Type: Through Hole
Height - Seated (Max): 0.787" (20.00mm)
Lifetime @ Temp.: 8000 hours @ a temperature of 105°C
Lifecycle Status: Not For New Designs
