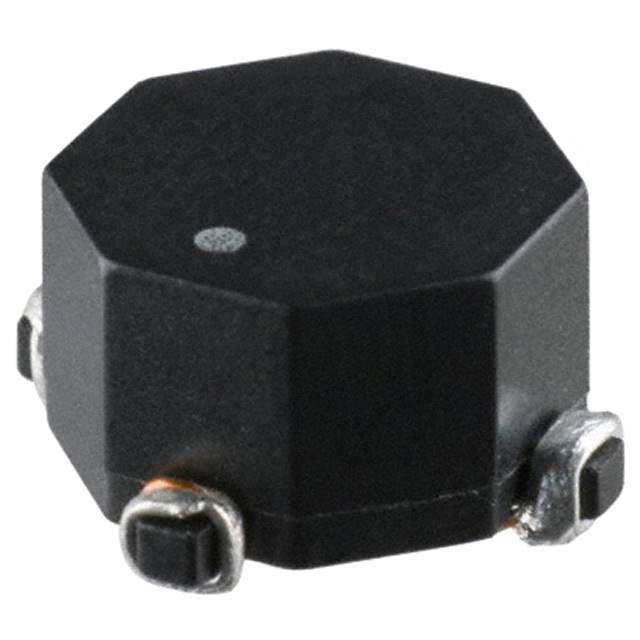

CMS2-12-R Real Image
Same model may have multiple batches, images only for reference.

CMS2-12-R

Part No CMS2-12-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 915UH 670MA 2LN SMD / 915 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 670mA DCR 330mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Eaton - Electronics Division
Series CMS
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 915 µH @ 100 kHz
Current Rating (Max) 670mA
DC Resistance (DCR) (Max) 330mOhm (Typ)
Temperature Range - Operating -40°C ~ 160°C
Mounting SMD (SMT)
Dimension 0.350" L x 0.350" W (8.90mm x 8.90mm)
Height (Max) 0.236" (6.00mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 283-CMS2-12-RCT,283-CMS2-12-RTR,283-CMS2-12-RDKR,CMS2-12-ND,CMS2-12-R-ND,CMS2-12
Standard Package 800
Win Source Part Number 1222679-CMS2-12-R
Ultra Librarian 3D Model Ultra Librarian CMS2-12-R CAD Model

Description

The CMS2-12-R is a common mode choke filter from Eaton designed for power line filtering.

  • Inductance: 915 µH @ 100 kHz frequency
  • Maximum DC Resistance: 330 mOhm
  • Maximum Current: 670 mA
  • Voltage Rating: AC and DC
  • Series: CMS
  • Package: Horizontal, 4 PC pad case
  • Height: 0.236 inches (6.00mm)
  • Mounting: SMD (SMT)
  • Lines: Two lines
  • Temperature Range: -40°C to 160°C
  • Packaging: Tape and reel
  • Pieces per Package: 800
