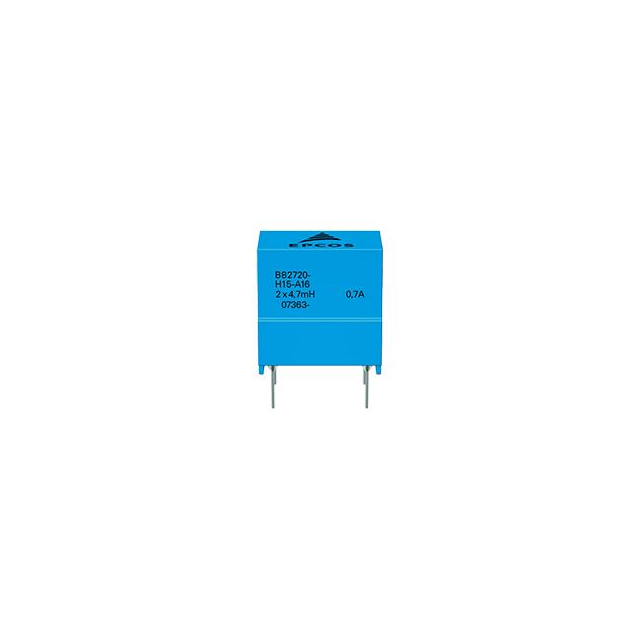

The B82720H15A16 is a common mode choke manufactured by TDK Corporation. Common mode chokes are used to suppress common-mode noise in electronic circuits. They are essential components for electromagnetic interference (EMI) suppression, particularly in power supplies and signal lines.

Applications:

• Power Supplies
• Inverters
• Electronic Ballasts
• Data and Signal Lines
• Motor Drives

Features:

• High Common Mode Impedance: Effectively blocks common-mode noise.
• Low Differential Mode Impedance: Minimally affects the desired signal.
• Compact Size: Allows for easy integration into dense circuit boards.
• High Current Capacity: Handles significant current without saturation.
• Wide Operating Temperature Range: Suitable for various environments.

Benefits:

• Effective EMI Suppression: Reduces unwanted noise, improving signal integrity and system performance.
• Minimized Signal Distortion: Low differential mode impedance ensures minimal impact on desired signals.
• Increased System Reliability: Protects sensitive circuits from noise-related malfunctions.
• Compliance with EMC Standards: Helps meet regulatory requirements for electromagnetic compatibility.
• Easy Integration: Compact size and standard pinout simplify the design process.

Technical Specifications:

The B82720H15A16 has a specific inductance value (e.g., in mH) and a rated current (e.g., in Amps). It is designed to operate within a certain frequency range where it provides optimal common-mode noise suppression. The operating temperature range is typically from -40°C to +125°C. It is often constructed with a ferrite core to enhance its impedance characteristics. The physical size and pin configuration vary based on the specific model.
