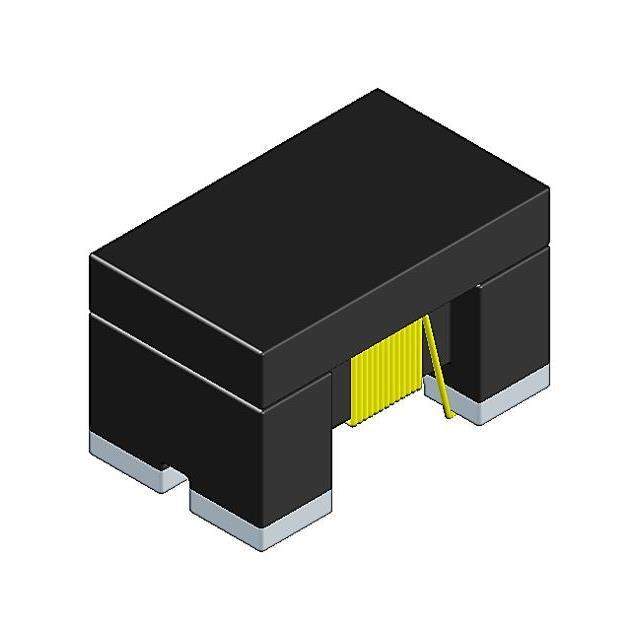

Same model may have multiple batches, images only for reference.

WCM 2012F2SF-361T03

Name: WCM 2012F2SF-361T03
Brand: TAI-TECH Advanced Electronics
SKU: 1383853
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	WCM 2012F2SF-361T03
Manufacturer	TAI-TECH Advanced Electronics
Catalog	Common Mode Chokes
Description	2 LINE COMMON MODE CHOKE SURFACE / 2 Line Common Mode Choke Surface Mount 360 Ohms @ 100 MHz 300mA DCR 500mOhm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Mfr	TAI-TECH Advanced Electronics
Series	WCM2012F2SF
Package	Tape & Reel
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	360 Ohms @ 100 MHz
Current Rating (Max)	300mA
DC Resistance (DCR) (Max)	500mOhm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Temperature Range - Operating	-40°C ~ 125°C
Ratings	-
Approval Agency	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max)	0.055" (1.40mm)
Package / Case	0805 (2012 Metric), 4 PC Pad
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Standard Package	2,000 pcs
Win Source Part Number	1383853-WCM 2012F2SF-361T03
Ultra Librarian 3D Model	Ultra Librarian WCM 2012F2SF-361T03 CAD Model

Description

The WCM2012F2SF-361T03 is a common mode choke from manufactured by TAI-TECH Advanced Electronics.

Application: Signal Line Filtering
Size: 0.079" L x 0.047" W (2.00mm x 1.20mm)
Mounting Type: Surface Mount
Voltage Rating: 50V (DC)
Current Rating: 300mA
Impedance: 360 Ohms @ 100 MHz
DC Resistance (DCR): 500mOhm (Maximum)
Package: Tape and Reel
Quantity: 2000 pieces
Operating Temperature: -40°C to 125°C
