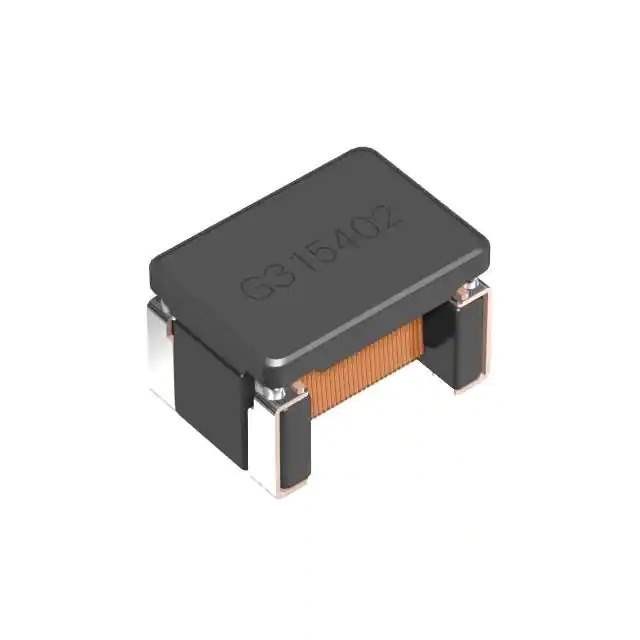

ACT45C-101-2P-TL000

Name: ACT45C-101-2P-TL000
Brand: TDK Corporation
SKU: 843106
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACT45C-101-2P-TL000
Manufacturer	TDK Corporation
Catalog	Common Mode Chokes
Description	CMC 100UH 150MA AEC-Q200 125DEGC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Common Mode Chokes
Mfr	TDK Corporation
Series	ACT45C
Package	Tape & Reel
Product Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	5.8 kOhms @ 10 MHz
Inductance @ Frequency	100 µH @ 100 kHz
Current Rating (Max)	150mA
DC Resistance (DCR) (Max)	2Ohm
Voltage Rating - DC	50V
Temperature Range - Operating	-40°C ~ 125°C
Ratings	AEC-Q200
Mounting Type	Surface Mount
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max)	0.118" (3.00mm)
Package / Case	Horizontal, 4 PC Pad
Standard Package	2,500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	843106-ACT45C-101-2P-TL000
Ultra Librarian 3D Model	Ultra Librarian ACT45C-101-2P-TL000 CAD Model

Alternative Products

Description

The TDK Corporation ACT45C-101-2P-TL000 is a common mode choke designed for signal line filtering.

Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height: 0.118" (3.00mm)
Voltage Rating: 50V DC
Current Rating: 150mA
Impedance: 5.8 kOhms @ 10 MHz
Mounting Type: Surface Mount
Packaging: Tape & Reel
Operating Temperature: -40°C to 125°C
