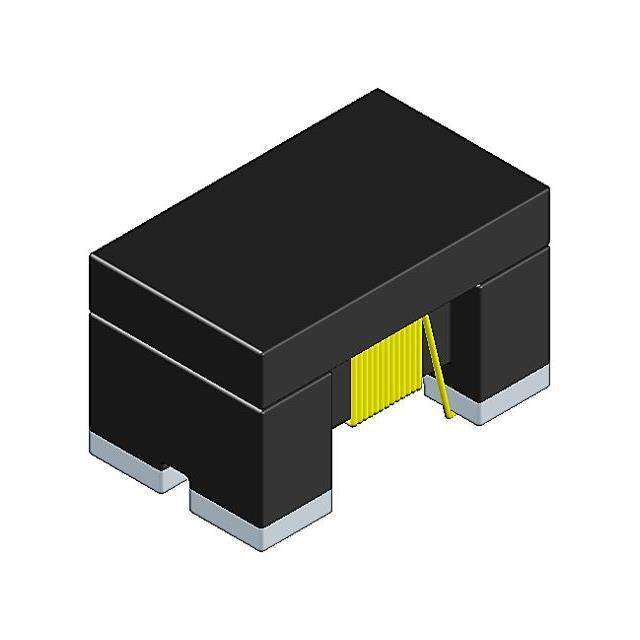

WCM 2012F2SF-161T03 Real Image1 WCM 2012F2SF-161T03 Real Image2
Same model may have multiple batches, images only for reference.
WCM 2012F2SF-161T03 Real Image1 WCM 2012F2SF-161T03 Real Image2
WCM 2012F2SF-161T03 Real Image1 WCM 2012F2SF-161T03 Real Image2
Same model may have multiple batches, images only for reference.

WCM 2012F2SF-161T03

Part No WCM 2012F2SF-161T03
Manufacturer TAI-TECH Advanced Electronics
Catalog Common Mode Chokes
Description 2 LINE COMMON MODE CHOKE SURFACE / 2 Line Common Mode Choke Surface Mount 160 Ohms @ 100 MHz 350mA DCR 350mOhm
Datasheet
WCM 2012F2SF-161T03 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr TAI-TECH Advanced Electronics
Series WCM2012F2SF
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 160 Ohms @ 100 MHz
Current Rating (Max) 350mA
DC Resistance (DCR) (Max) 350mOhm
Voltage Rating - DC 50V
Voltage Rating - AC -
Temperature Range - Operating -40°C ~ 125°C
Ratings -
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.055" (1.40mm)
Package / Case 0805 (2012 Metric), 4 PC Pad
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 2,000 pcs
Win Source Part Number 1383852-WCM 2012F2SF-161T03
Ultra Librarian 3D Model Ultra Librarian WCM 2012F2SF-161T03 CAD Model

Description

The WCM2012F2SF-161T03 is a common mode choke designed for signal line filtering.

  • Voltage Rating: 50V (DC)
  • Current Rating: 350mA
  • Size: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height: 0.055" (1.40mm)
  • Number of Lines: 2
  • Impedance: 160 Ohms @ 100 MHz
  • DC Resistance (DCR): 350mOhm
  • Mounting Type: Surface Mount
  • Package/Case: 0805 (2012 Metric), 4 PC Pad
  • Operating Temperature: -40°C to 125°C
