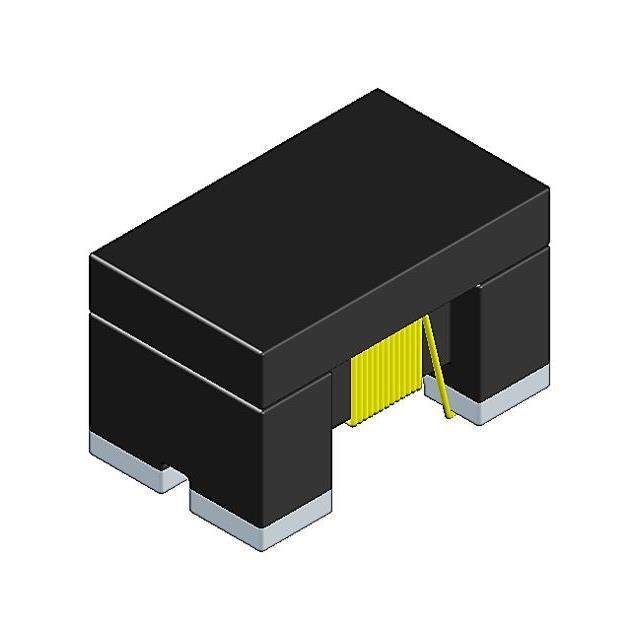

ACM 3225F2DV-220T02-D

Part No ACM 3225F2DV-220T02-D
Manufacturer TAI-TECH Advanced Electronics
Catalog Common Mode Chokes
Description 22 UH @ 100 KHZ 2 LINE COMMON MO / 22 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 1.1 kOhms @ 10 MHz 250mA DCR 500mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr TAI-TECH Advanced Electronics
Series ACM3225F2DV
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 1.1 kOhms @ 10 MHz
Inductance @ Frequency 22 µH @ 100 kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 500mOhm
Voltage Rating - DC 80V
Voltage Rating - AC -
Temperature Range - Operating -55°C ~ 150°C
Ratings AEC-Q200
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) 0.098" (2.50mm)
Package / Case 1210 (3225 Metric)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Standard Package 2,000 pcs
Win Source Part Number 1381307-ACM 3225F2DV-220T02-D
Ultra Librarian 3D Model Ultra Librarian ACM 3225F2DV-220T02-D CAD Model

Description

The 1198443 is a common mode choke manufactured by TAI-TECH Advanced Electronics.

  • Series: ACM3225F2DV
  • Application: Signal Line Filtering
  • Voltage Rating: 80V
  • Current Rating: 250mA
  • Package Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Number of Lines: 2
  • Impedance: 1.1 kOhms @ 10 MHz
  • Packaging: Tape & Reel
  • AEC-Q200: Yes
