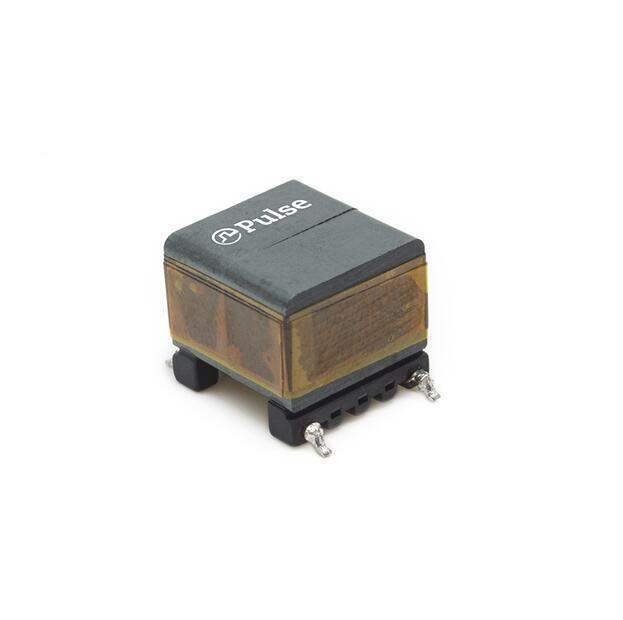

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1197334-PAC6006.364NLT
Win Source Part Number Cross
Manufacturer Pulse Electronics
Category Filters Common Mode Chokes
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Impedance @ Frequency 1.6 kOhms @ 5.5 MHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 8mOhm (Typ)
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian PAC6006.364NLT CAD Model

Description

The Pulse Electronics common mode choke is a filtering component used in electronic circuits. It is designed to reduce electromagnetic interference and improve signal quality. This choke has a maximum current rating of 10A and an impedance of 1.6 kOhms at a frequency of 5.5 MHz. The DC resistance (DCR) is 8mOhm (typical). It operates in a temperature range of -40°C to 125°C and is surface mountable. This product is currently active and manufactured by Pulse Electronics.
