Same model may have multiple batches, images only for reference.

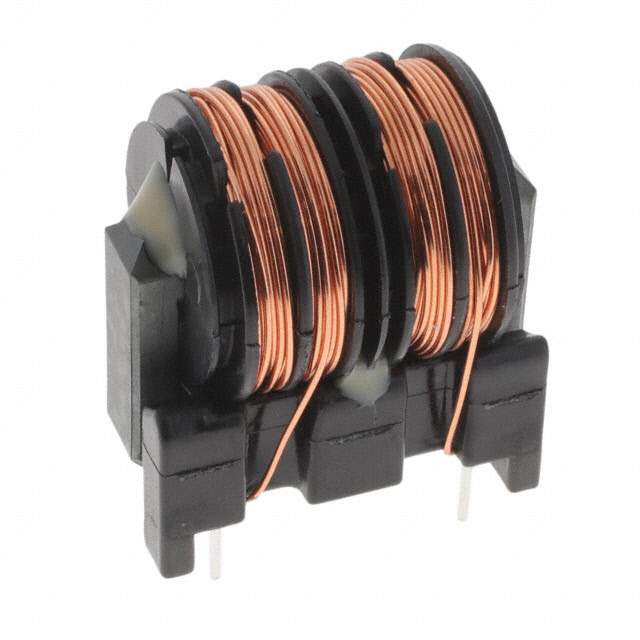

SS30V-120290 Real Image
Same model may have multiple batches, images only for reference.

SS30V-120290

Part No SS30V-120290
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 29 mH @ 1 kHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 600mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS30V
Other Names 399-SS30V-120290
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276724-SS30V-120290
Ultra Librarian 3D Model Ultra Librarian SS30V-120290 CAD Model

Description

The KEMET SS30V-120290 is a common mode choke filter from.

  • Mounting Type: Through-hole
  • Maximum Current Rating: 1.2A
  • Voltage Rating: 250V AC
  • Height: 1.339 inches (34.00mm)
  • Filter Type: Power line
  • Package: Tray
  • Inductance: 29 mH @ 1 kHz
  • DC Resistance (DCR): 600mOhm
  • Temperature Range: -25°C to 120°C
  • Perfect for: Use in electronic devices that require filtering of power line noise
