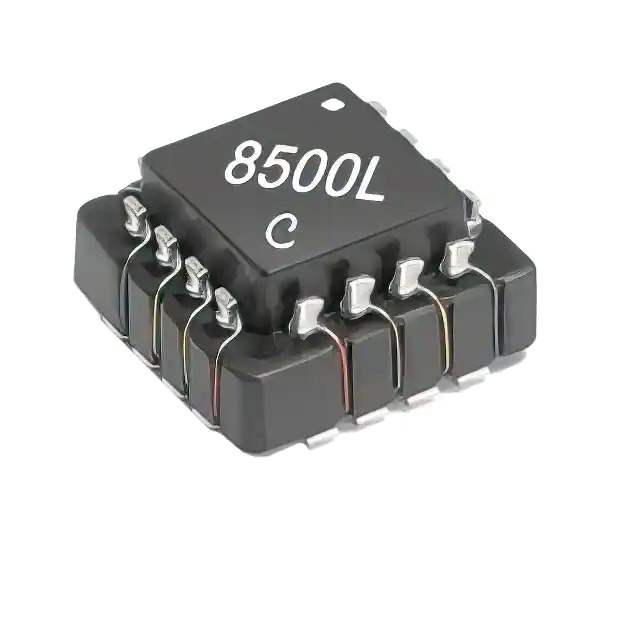

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr COILCRAFT
Series CDF
Package Strip
Product Status Active
Filter Type Signal Line
Number of Lines 8
Impedance @ Frequency 520 Ohms @ 42 MHz
Inductance @ Frequency 5 µH @ 1 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 180mOhm
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height (Max) 0.177" (4.50mm)
Package / Case 16-BQFN
Standard Package 1 pcs
REACH Status Vendor Undefined
ECCN EAR99
Win Source Part Number 820237-CDF8500LD
Ultra Librarian 3D Model Ultra Librarian CDF8500LD CAD Model

Description

The 820237-CDF8500LD is a common mode choke filter from the CDF series by COILCRAFT.

  • Series: CDF
  • Package: Strip
  • Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Maximum Height: 0.177" (4.50mm)
  • Lines: 8
  • Impedance: 520 Ohms @ 42 MHz
  • Inductance @ 1 MHz: 5 µH
  • Maximum DCR: 180mOhm
  • Maximum Current Rating: 500mA
  • Operating Temperature Range: -40°C to 85°C
  • Mounting: Surface Mount
  • Applications: Various electronic applications
