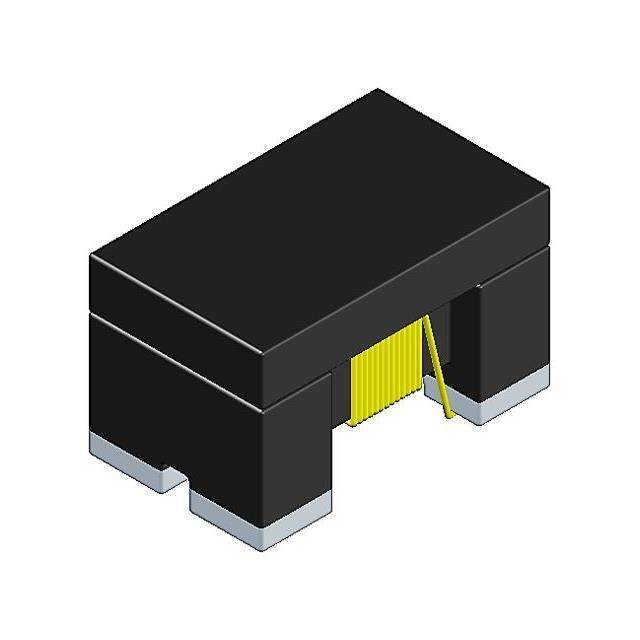

ACM 4532F2WV-201T01-D Real Image
Same model may have multiple batches, images only for reference.

ACM 4532F2WV-201T01-D

Part No ACM 4532F2WV-201T01-D
Manufacturer TAI-TECH Advanced Electronics
Catalog Common Mode Chokes
Description 200 UH @ 100 KHZ 2 LINE COMMON M / 200 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 100mA DCR 4.5Ohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr TAI-TECH Advanced Electronics
Series ACM4532F2WV
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 200 µH @ 100 kHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 4.5Ohm
Voltage Rating - DC 50V
Voltage Rating - AC -
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) 0.116" (2.95mm)
Package / Case Horizontal, 4 PC Pad
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 500 pcs
Win Source Part Number 1381310-ACM 4532F2WV-201T01-D
Ultra Librarian 3D Model Ultra Librarian ACM 4532F2WV-201T01-D CAD Model

Description

The TAI-TECH Advanced Electronics ACM4532F2WV Common Mode Chokes are compact filters used for signal line applications.

  • Voltage Rating: 50V (DC)
  • Current Rating: 100mA
  • Packaging: Tape & Reel
  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Inductance: 200 µH @ 100 kHz
  • DC Resistance (DCR): 4.5 Ohm (max)
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 125°C
