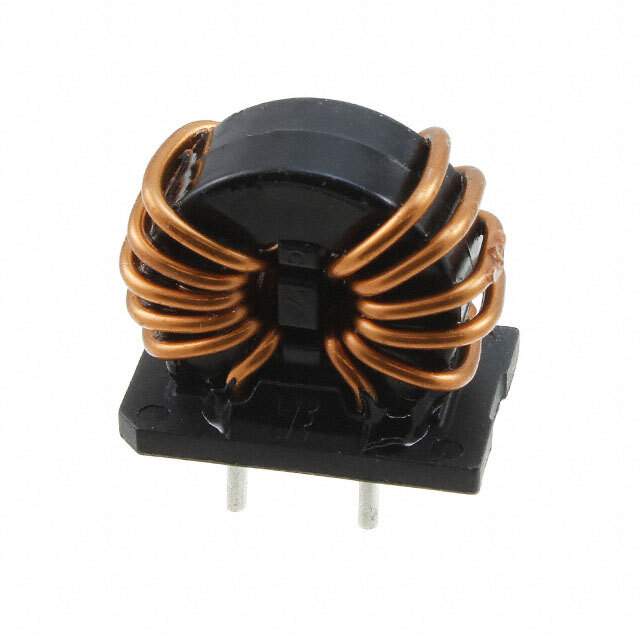

7448041801 Real Image1 7448041801 Real Image2
Same model may have multiple batches, images only for reference.
7448041801 Real Image1 7448041801 Real Image2
7448041801 Real Image1 7448041801 Real Image2
Same model may have multiple batches, images only for reference.

7448041801

Part No 7448041801
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1.5MH 18A 2LN TH / 1.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 18A DCR 3.2mOhm
Datasheet
7448041801 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-CMBNC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5 mH @ 10 kHz
Current Rating (Max) 18A
DC Resistance (DCR) (Max) 3.2mOhm
Voltage Rating - DC -
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Ratings -
Approval Agency -
Features -
Mounting Type Through Hole
Size / Dimension 1.181" L x 0.748" W (30.00mm x 19.00mm)
Height (Max) 1.260" (32.00mm)
Package / Case Vertical, 4 PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 25 pcs
Win Source Part Number 1381126-7448041801
Ultra Librarian 3D Model Ultra Librarian 7448041801 CAD Model

Description

The 1198262 is a common mode choke from the WE-CMBNC series by Wurth Electronics Inc.

  • Mounting Type: Through Hole
  • Size: 1.181" L x 0.748" W (30.00mm x 19.00mm)
  • Height: 1.260" (32.00mm)
  • Voltage Rating: 250V
  • Current Rating: 18A
  • Inductance: 1.5 mH @ 10 kHz
  • DC Resistance (DCR): 3.2mOhm maximum
  • Application: Power Line Filtering
  • Operating Temperature: -40°C to 125°C
  • Package: Bulk
  • Pieces Per Package: 25
