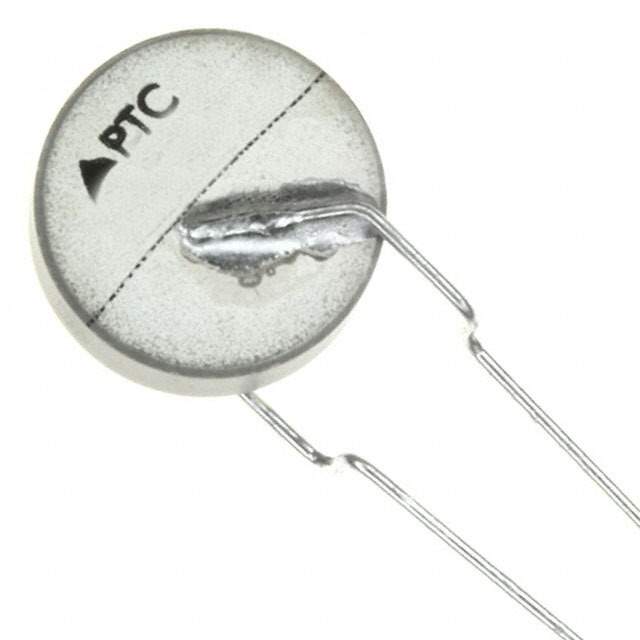

B59770B120A70 Real Image
Same model may have multiple batches, images only for reference.

B59770B120A70

Part No B59770B120A70
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description Thermistor PTC 70Ohm 25% 2-Pin Radial Cardboard Strip
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Radial
Contact Plating Tin
Diameter 8.5 mm
Hold Current 64 mA
Lead Diameter 600 µm
Lead Pitch 5 mm
Max Current Rating 1.4 A
Maximum Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Pins 2
Packaging Bulk
Radiation Hardening No
Resistance 70 Ω
RoHS Compliant
Schedule B 8533210025
Time to Trip 4 s
Trip Current 127 mA
Width 13 mm
Win Source Part Number 1017526-B59770B120A70
Categories PTC Resettable Fuses
Manufacturer EPCOS (TDK)
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian B59770B120A70 CAD Model

Description

The PTC Resettable Fuse is a radial packaged component with a 70 Ω resistance, 127 mA trip current, and 64 mA hold current. It is manufactured by EPCOS (TDK).

  • Resistance: 70 Ω
  • Trip Current: 127 mA
  • Hold Current: 64 mA
  • Maximum Current Rating: 1.4 A
  • Time to Trip: 4 s
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 125 °C
  • Applications: power supplies, battery chargers, and other electronic equipment
  • Alternative Parts: PTGL07BD330N3B51B0, LVR005NS, B59875C120A70, LVR005NK, MF-RM005/240-2B59770-B120-A70, and B59770B 120A 70
