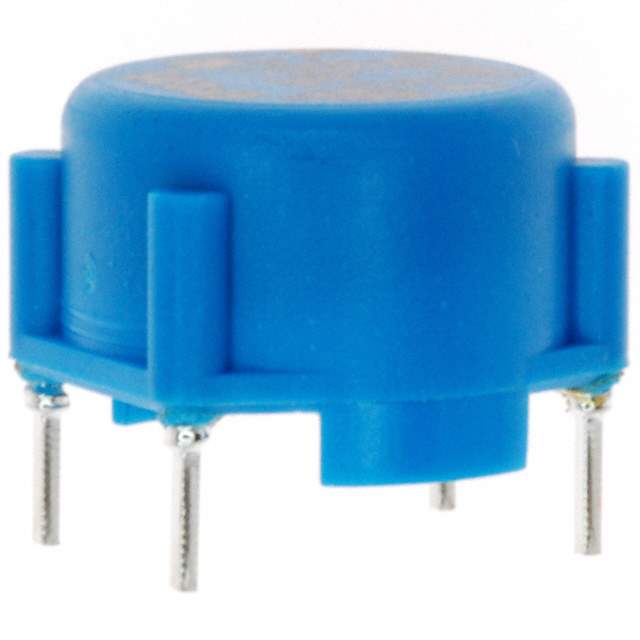

B82721A2122N020 Real Image
Same model may have multiple batches, images only for reference.

B82721A2122N020

Part No B82721A2122N020
Manufacturer EPCOS (TDK)
Catalog Common Mode Chokes
Description CMC 6.8MH 1.2A 2LN TH / 6.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.2A DCR 280mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr EPCOS - TDK Electronics
Series B82721
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6.8 mH @ 10 kHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 280mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Approval Agency ENEC, UR, VDE
Mounting Type Through Hole
Dimension 0.705" L x 0.681" W (17.90mm x 17.30mm)
Height (Max) 0.496" (12.60mm)
Package / Case Horizontal, 4 PC Pin
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8548.00.0000
Other Names 495-2722,B82721A2122N20,B82721A2122N 20
Standard Package 600
Win Source Part Number 1224368-B82721A2122N020
Ultra Librarian 3D Model Ultra Librarian B82721A2122N020 CAD Model

Description

The EPCOS - TDK Electronics B82721A2122N020 is a common mode choke filter with a voltage rating of 250V and a current rating of 1.2A.

  • Inductance: 6.8 mH @ 10 kHz
  • DC Resistance (Typ): 280mOhm
  • Mounting Type: Through-Hole
  • Package/Case: Horizontal, 4 PC Pin
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.705" L x 0.681" W (17.90mm x 17.30mm)
  • REACH: Affected
  • ECCN: EAR99
