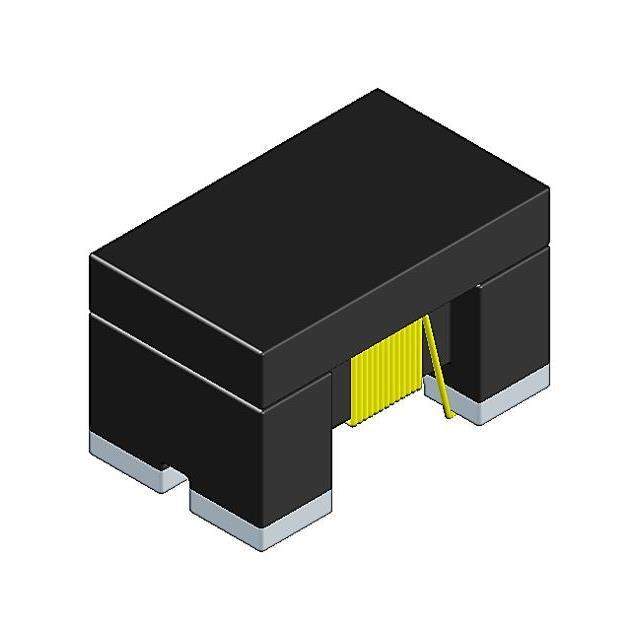

ACM 4532F2NV-220T03-D

Part No ACM 4532F2NV-220T03-D
Manufacturer TAI-TECH Advanced Electronics
Catalog Common Mode Chokes
Description 22 UH @ 100 KHZ 2 LINE COMMON MO / 22 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 1.2 kOhms @ 10 MHz 310mA DCR 1Ohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr TAI-TECH Advanced Electronics
Series ACM4532F2NV
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 1.2 kOhms @ 10 MHz
Inductance @ Frequency 22 µH @ 100 kHz
Current Rating (Max) 310mA
DC Resistance (DCR) (Max) 1Ohm
Voltage Rating - DC 50V
Voltage Rating - AC -
Temperature Range - Operating -55°C ~ 150°C
Ratings AEC-Q200
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) 0.118" (3.00mm)
Package / Case 1812 (4532 Metric)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Standard Package 500 pcs
Win Source Part Number 1381309-ACM 4532F2NV-220T03-D
Ultra Librarian 3D Model Ultra Librarian ACM 4532F2NV-220T03-D CAD Model

Description

The ACM4532F2NV series common mode choke is a compact and efficient component for filtering signal lines.

  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Voltage Rating: 50V (DC)
  • Current Rating: 310mA
  • Number of Lines: 2
  • Impedance: 1.2 kOhms @ 10 MHz
  • Inductance: 22 µH @ 100 kHz
  • Mounting Type: Surface Mount
  • Package: 1812 (4532 Metric)
  • Temperature Range: -55°C to 150°C
  • AEC-Q200: Yes
