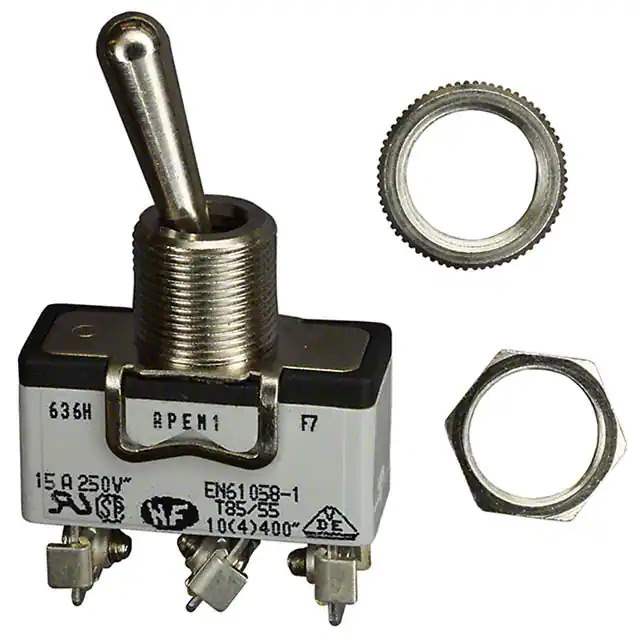

636H Real Image
Same model may have multiple batches, images only for reference.

636H

Part No 636H
Manufacturer Apem Inc.
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 15A 250V / Toggle Switch SPDT Panel Mount
Datasheet
636H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr APEM Inc.
Series 600H
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 250 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.20mm Dia
Bushing Thread M12 x 0.75
Temperature Range - Operating -20°C ~ 55°C
Actuator Material Brass, Nickel Plated
Electrical Life 10,000 Cycles
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 856881-636H
Ultra Librarian 3D Model Ultra Librarian 636H CAD Model

Description

The 856881-636H is a toggle switch from APEM Inc.

  • Series: 600H
  • Termination Style: Screw Terminal
  • Voltage Rating: 250V AC
  • Current Rating: 15A
  • Circuit Configuration: SPDT
  • Switch Function: On-On
  • Actuator Type: Standard Round
  • Actuator Length: 17.50mm
  • Actuator Material: Brass and Nickel-Plated
  • Electrical Life: 10,000 cycles
  • Panel Cutout Dimensions: Circular, 12.20mm Diameter
  • Mounting Type: Panel Mount
  • Bushing Thread Size: M12 x 0.75
  • Operating Temperature: -20°C to 55°C
  • Illumination: Non-Illuminated
  • Package: Bulk (25 pieces)
