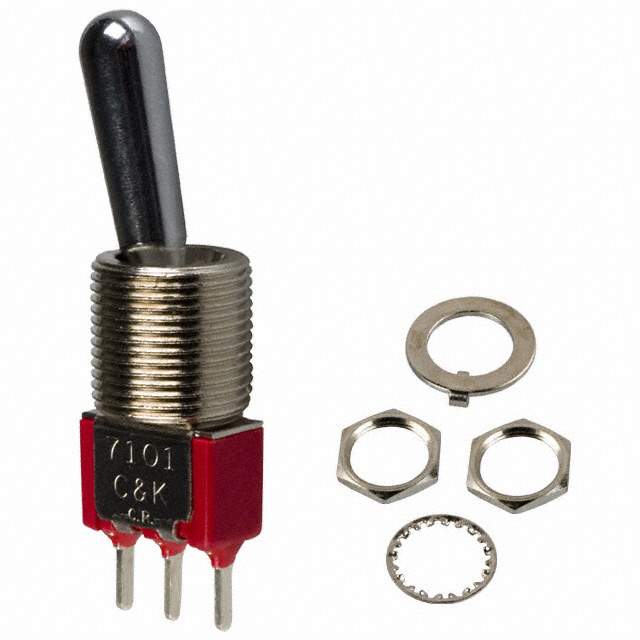

7101TV41LE Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer C&K Components
Packaging Bulk
Status Active
Circuit SPDT
Switch Function On-On
Current Rating 5A (AC/DC)
Voltage Rating - AC 120V
Voltage Rating - DC 28V
Actuator Type Standard Round
Actuator Length 17.45mm
Illumination Non-Illuminated
Mounting Panel Mount
Termination Style PC Pin
Panel Cutout Dimensions Circular - 11.91mm Dia
Bushing Thread 15/32-32
Features Epoxy Sealed Terminals
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Temperature Range - Operating -30°C to 85°C
Win Source Part Number 111522-7101TV41LE
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7101TV41LE CAD Model

Description

Product Overview

The 7101TV41LE switch is engineered for versatility and durability, suitable for an array of electronic projects and devices. Its user-friendly design and reliable performance make it a valuable addition to any toolkit.

  • Consumer electronics
  • Wireless communication devices
  • Smart home devices

Features and Benefits

  • High Reliability: Ensures consistent performance across a wide temperature range.
  • Easy Installation: Simplified design allows for quick and straightforward installation.
  • Compact Form Factor: Ideal for applications where space is limited.

Additional Details

Designed to cater to both professional and amateur needs, the 7101TV41LE switch offers a blend of efficiency and simplicity in its operation.
