Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr APEM Inc.
Series 600H
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 250 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.20mm Dia
Bushing Thread M12 x 0.75
Temperature Range - Operating -20°C ~ 55°C
Actuator Material Brass, Nickel Plated
Electrical Life 10,000 Cycles
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 856874-631H
Ultra Librarian 3D Model Ultra Librarian 631H CAD Model

Description

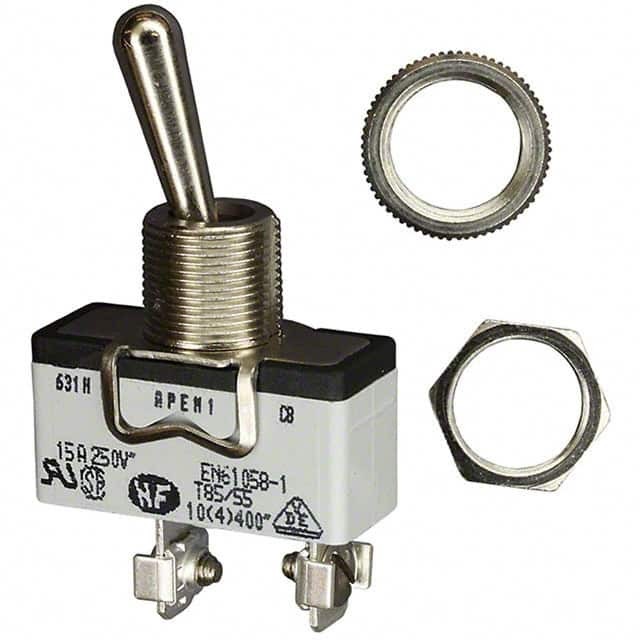

The 856874-631H is a toggle switch from the 600H series, designed for various switching applications. APEM Inc. manufactures this.

  • Series: 600H
  • Termination Style: Screw Terminal
  • Voltage Rating: 250VAC
  • Current Rating: 15A (AC)
  • Standard Package Quantity: 25 pcs
  • Mounting Type: Panel Mount
  • Circuit: SPST (Single-Pole, Single-Throw)
  • Switch Function: On-Off
  • Actuator Type: Standard Round
  • Actuator Length: 17.50mm
  • Electrical Life: 10,000 Cycles
  • Product Status: Active
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8536.50.9065
