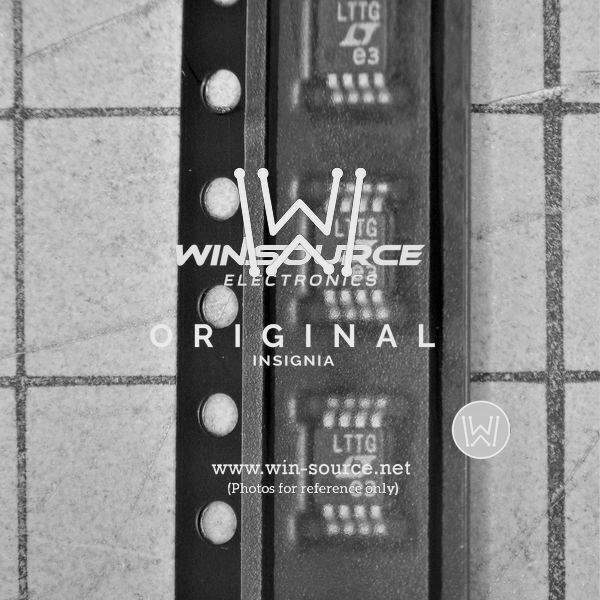

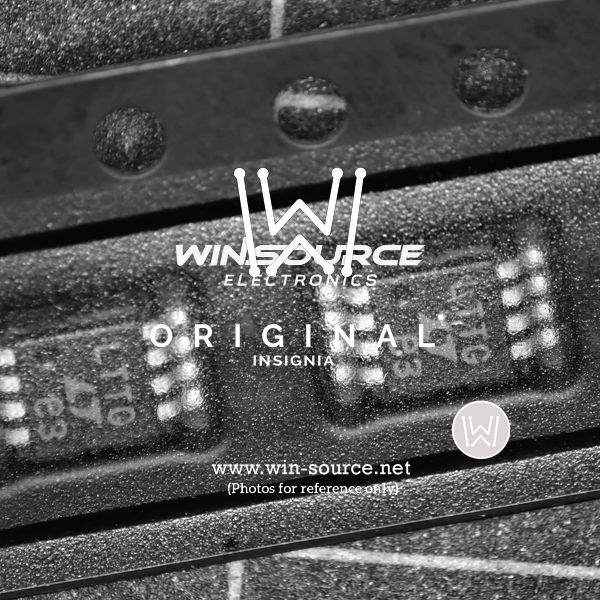

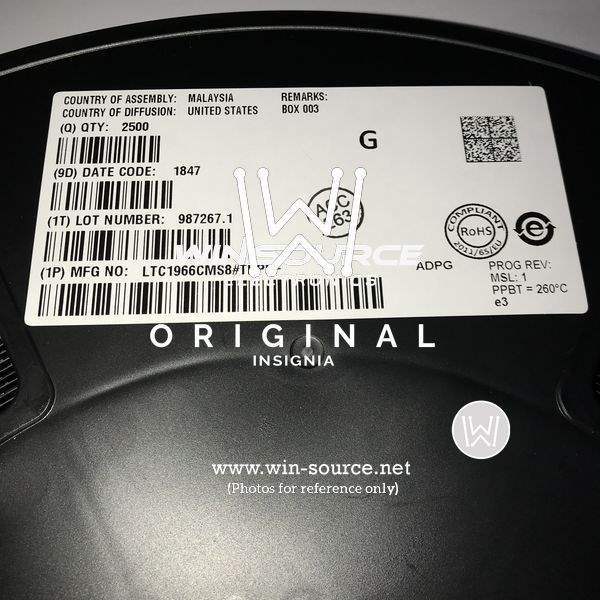

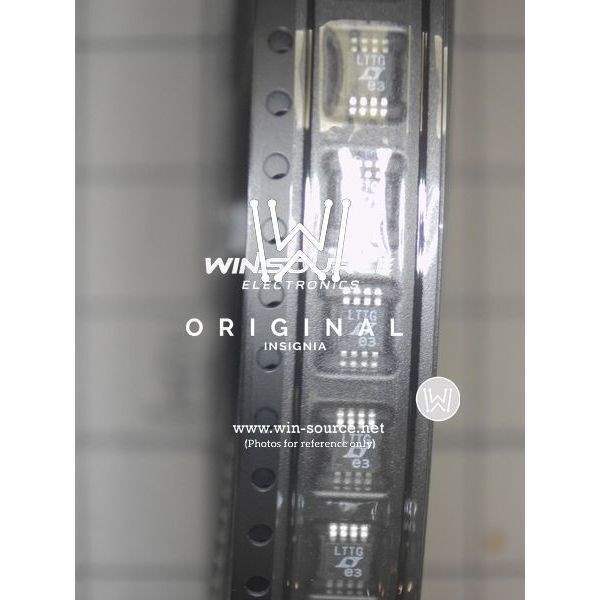

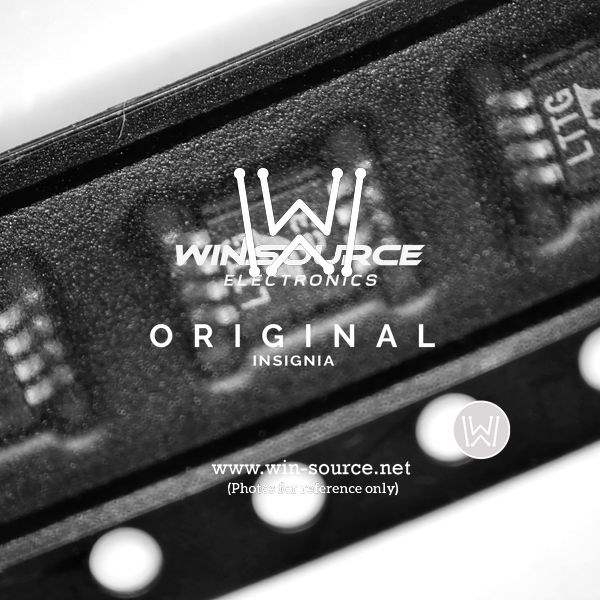

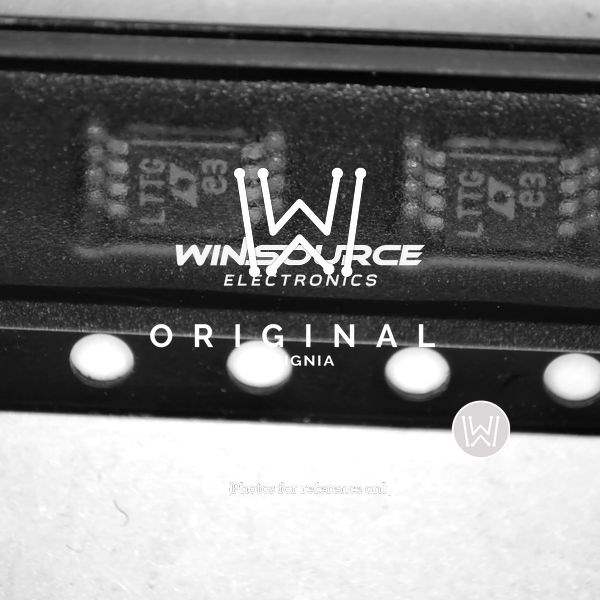

Product Overview: LTC1966CMS8#TRPBF

The LTC1966CMS8#TRPBF is a high-precision, easy-to-use RMS-to-DC converter from Analog Devices Inc., designed for a wide range of applications, including industrial, automotive, communications, and medical systems. This innovative device utilizes a patented ∆Σ (Delta-Sigma) computational technique to provide a true RMS calculation of complex signals with a high degree of accuracy and a wide dynamic range.

Key Features

• True RMS-to-DC Conversion: Accurately measures the root mean square of both pure sine waves and complex, variable waveforms.
• Wide Bandwidth: Capable of measuring signals with up to 1MHz bandwidth, making it suitable for high-frequency applications.
• High Accuracy: Maintains a high level of accuracy with a typical error of less than 0.1%.
• Low Power Consumption: With a quiescent current of only 160µA, it is ideal for battery-operated devices and power-sensitive applications.
• Flexible Supply Voltage Range: Operates from a single 2.7V to 5.5V supply, accommodating a variety of power sources.
• No External Trimming: Requires no external trim components for full accuracy, simplifying design and reducing component count.
• Compact MSOP-8 Package: The LTC1966CMS8#TRPBF comes in a space-saving MSOP-8 package, ideal for compact circuit designs.

Applications

• AC Power Monitoring
• Battery Chargers
• Wireless Transmitters
• Audio Analysis
• Signal Processing
• Motor Control

The LTC1966CMS8#TRPBF stands out for its ease of use, requiring minimal external components to set up. It is designed to interface directly with a microcontroller or other digital systems thanks to its analog output, which simplifies integration into digital feedback and control systems. With its robust design and high reliability, the LTC1966CMS8#TRPBF is a go-to choice for engineers looking for a precise RMS-to-DC converter that combines performance with practicality.

Whether you're designing a sophisticated industrial monitoring system or a high-fidelity audio device, the LTC1966CMS8#TRPBF provides the accuracy and reliability you need in a compact, power-efficient package.
