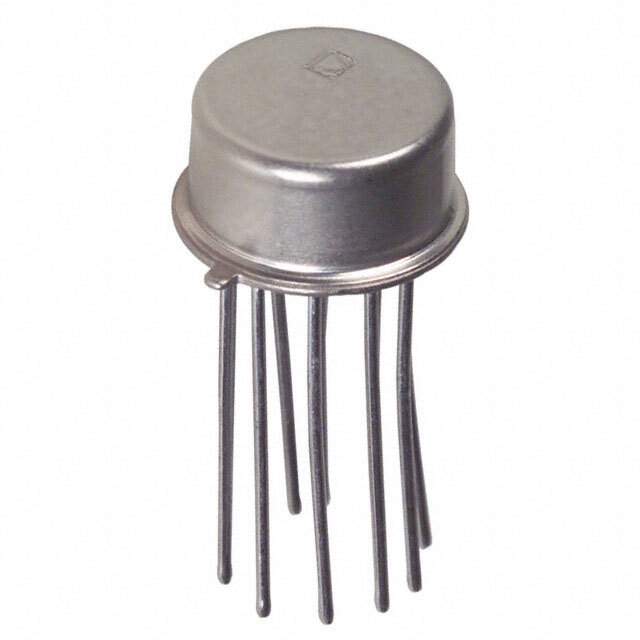

AD536AKHZ

Part No AD536AKHZ
Manufacturer Analog Devices Inc.
Catalog PMIC - RMS to DC Converters
Description Integrated Circuit True RMS-to-DC Converter
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Analog Devices Inc.
Packaging Tube
Operating Supply Current 1.2mA
Operating Supply Voltage 5 V ~ 36 V, ±3 V ~ 18 V
Mounting Style Through Hole
Package TO-100-10 Metal Can
Manufacturer Package TO-100-10
Win Source Part Number 1136178-AD536AKHZ
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Limited
Family Name AD536A
Introduction Date October 26, 1995
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian AD536AKHZ CAD Model

Description

The AD536AKHZ is a sophisticated, integrated circuit from Analog Devices Inc., renowned for its precision and reliability in the field of electronic component manufacturing. This monolithic computational analog processor computes the true root-mean-square (RMS) value of any complex waveform. Its versatility allows it to be used in a wide range of applications, including signal processing, industrial controls, and instrumentation.

Key Features

  • High Accuracy: The AD536AKHZ delivers highly accurate RMS calculations, ensuring precision in various applications.
  • Wide Bandwidth: Capable of working efficiently across a wide bandwidth, this device can handle waveforms of up to 300 kHz, making it suitable for high-frequency signal applications.
  • Low Power Consumption: Designed for optimal efficiency, it has a low power requirement, which is ideal for portable and battery-powered devices.
  • Temperature Stability: The device maintains consistent performance over a temperature range of -55°C to +125°C, ensuring reliability in varying environmental conditions.
  • Voltage Range: It operates over a specified power supply voltage range of ±4.5 V to ±18 V, providing flexibility in system design.

Applications

The AD536AKHZ is suitable for a variety of applications, such as:

  • Power measurement in communication systems
  • Audio signal processing
  • Industrial automation and control systems
  • Precision instrumentation
  • Analog-to-digital conversion systems

Product Specifications

Parameter Value
Function RMS-to-DC Converter
Input Voltage Range ±7 V (differential)
Package / Case TO-100-10
Operating Temperature -55°C to +125°C
Mounting Type Through Hole

For designers and engineers seeking a reliable RMS-to-DC converter, the AD536AKHZ from Analog Devices Inc. presents an optimal solution, providing both accuracy and durability in a range of complex applications.
