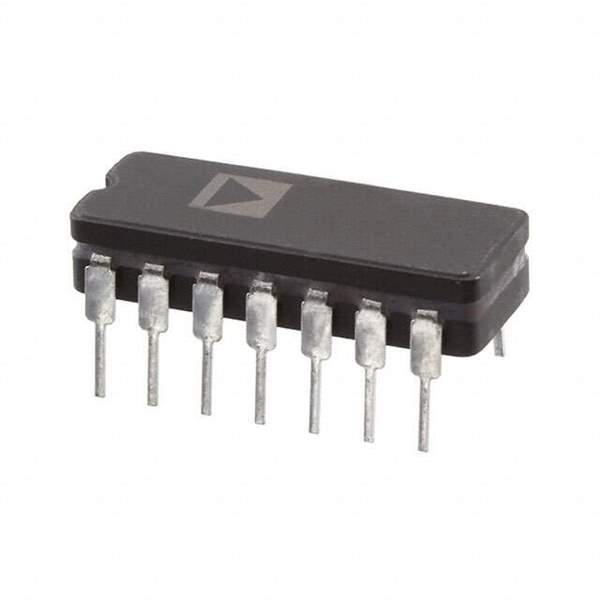

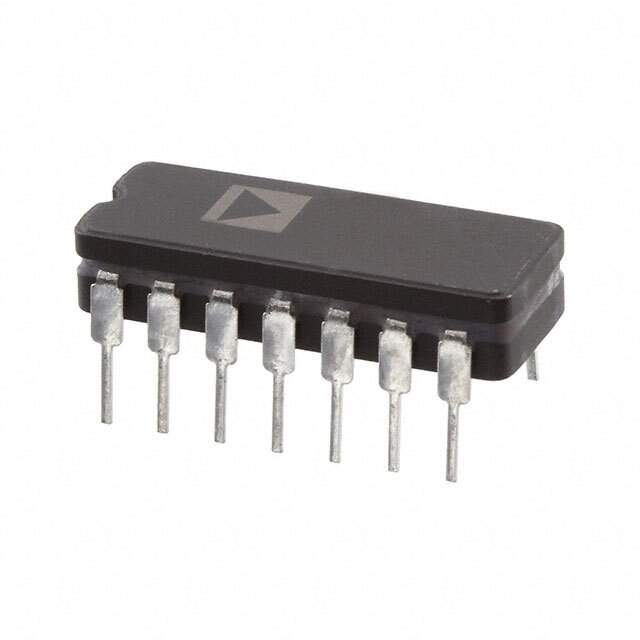

AD536AKQ

Part No AD536AKQ
Manufacturer Analog Devices Inc.
Catalog PMIC - RMS to DC Converters
Description Integrated Circuit True RMS-to-DC Converter | IC TRUE RMS/DC CONV 14CDIP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Analog Devices Inc.
Packaging Tube
Status Obsolete
Supply Current 1.2mA
Supply Voltage (V) 5V ~ 36V, ±3V ~ 18V
Mounting Style Through Hole
Manufacturer Package 14-CDIP
Supplier Device Package 14-CERDIP
Family Part Number AD536A
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Win Source Part Number 1136179-AD536AKQ
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AD536AKQ CAD Model

Description

Analog Devices AD536AKQ Integrated Circuit Description

The AD536AKQ is a high-performance, precision integrated circuit produced by Analog Devices Inc., a leader in the field of high-performance analog, mixed-signal, and digital signal processing integrated circuits. This particular model is renowned for its ability to directly compute the true root-mean-square (RMS) value of complex waveforms, with signal levels ranging from low millivolts to several volts.

The AD536AKQ is designed for high accuracy and offers a wide bandwidth, making it an ideal choice for a variety of applications that require precise RMS calculations. This includes uses in measurement equipment, motor control, audio signal processing, and power management systems, among others.

Key Features of the AD536AKQ:

  • True RMS-to-DC Conversion: It is capable of computing the true RMS value of any complex waveform with an accuracy of 0.3% of reading.
  • Wide Bandwidth: With a bandwidth of 450 kHz, the AD536AKQ can handle a broad range of frequencies, making it versatile for different applications.
  • Low Power Consumption: The device is designed for efficiency, requiring a low supply current, which is ideal for battery-powered or energy-sensitive applications.
  • High Input Impedance: The high input impedance minimizes loading on the input signal source.
  • Temperature Stability: The AD536AKQ provides consistent performance over a temperature range, ensuring reliability in various operating conditions.
  • Calibration: It includes an internal calibration feature, which simplifies the calibration process and enhances measurement accuracy.
  • Versatile Power Supply Options: The device can be powered by a single supply of +5 V to +30 V or dual supplies of ±5 V to ±15 V.

The AD536AKQ is available in a ceramic DIP package, which ensures robustness and durability for industrial-grade applications. Its pin configuration is designed for easy integration into existing systems, providing a straightforward solution for engineers looking to implement RMS calculations.

Overall, Analog Devices' AD536AKQ is a reliable and precise instrument for RMS measurement, reflecting the company's commitment to delivering high-quality and innovative solutions to the electronics market.
