Same model may have multiple batches, images only for reference.

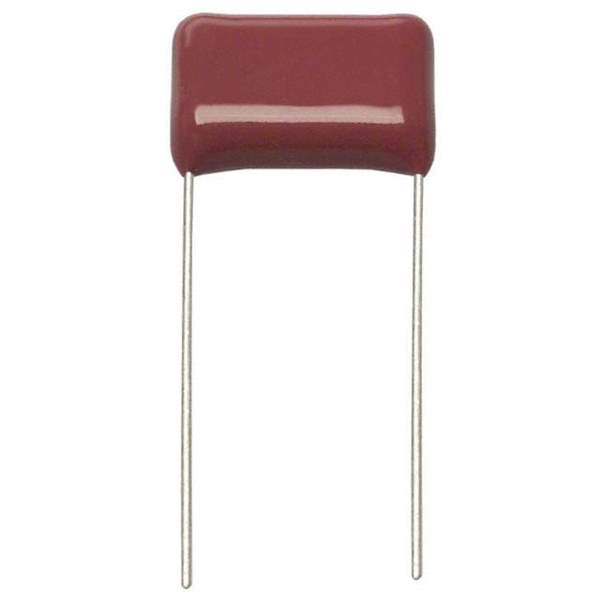

ECW-H12103JV Real Image
Same model may have multiple batches, images only for reference.

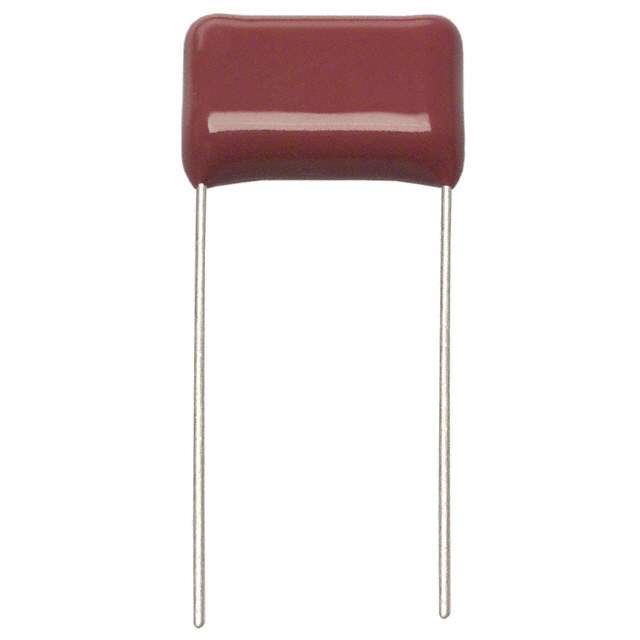

ECW-H12103JV

Part No ECW-H12103JV
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 10000PF 5% 1.25KVDC RAD / 10000 pF Film Capacitor 354V 1250V (1.25kV) Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Manufacturer Panasonic Electronic Components
Packaging Bulk
Capacitance 10000 pF
Tolerance ±5%
Voltage Rating - AC 354V
Voltage Rating - DC 1250V (1.25kV)
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 105°C
Mounting Through Hole
Case / Package Radial
Size / Dimension 0.709" L x 0.315" W (18.00mm x 8.00mm)
Height - Seated (Max) 0.650" (16.50mm)
Termination PC Pins
Lead Spacing 0.591" (15.00mm)
Applications High Frequency, Switching
Base Product Number ECW-H
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0040
Other Part Number P10482-NDR,P10482,ECWH12103JV
Standard Package 100
Win Source Part Number 1329512-ECW-H12103JV
Ultra Librarian 3D Model Ultra Librarian ECW-H12103JV CAD Model

Description

The ECW-H12103JV is a film capacitor that is designed for use in high-frequency and switching applications from Panasonic.

  • Capacitance: 10000 pF
  • Tolerance: ±5%
  • Dielectric Material: Polypropylene (PP) and metallized
  • Voltage Rating: 354V AC and 1250V DC
  • Case/Package: Radial
  • Height: 0.650 inches
