Same model may have multiple batches, images only for reference.

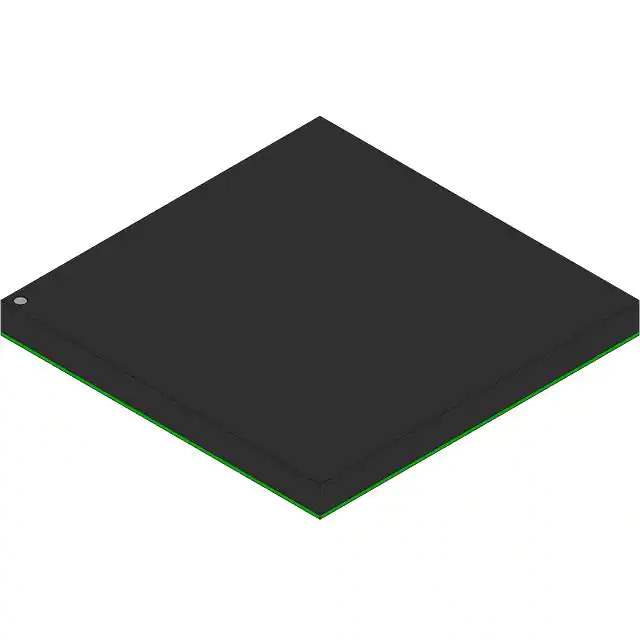

EPXA4F1020C1 Real Image
Same model may have multiple batches, images only for reference.

EPXA4F1020C1

Part No EPXA4F1020C1
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array) with Microcontrollers
Description LOADABLE PLD, PBGA1020
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array) with Microcontrollers
Mfr Altera
Series Excalibur™
Package Tray
Product Status Obsolete
Core Type 32-Bit ARM9
Speed 266 MHz
Interface EBI/EMI, UART/USART
Program SRAM Bytes 128K
Data SRAM Bytes 64K
FPGA Core Cells 16640
FPGA Gates 400K
Voltage - Supply 1.8V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C
Package / Case 1020-BBGA, FCBGA
Supplier Device Package 1020-FBGA (33x33)
Standard Package 4 pcs
ECCN 3A001A7A
HTSUS 8542.39.0001
Win Source Part Number 870677-EPXA4F1020C1
Ultra Librarian 3D Model Ultra Librarian EPXA4F1020C1 CAD Model

Description

The Excalibur™ 870677-EPXA4F1020C1 is an integrated circuit (IC) designed for Embedded Field Programmable Gate Array (FPGA) with Microcontrollers.

  • Core Type: 32-Bit ARM9
  • Speed: 266 MHz
  • Program SRAM: 128K bytes
  • Data SRAM: 64K bytes
  • FPGA Core Cells: 16640
  • FPGA Gates: 400K
  • Voltage Supply: 1.8V
  • Mounting: surface mount
  • Temperature Range: 0°C to 85°C
  • Product Status: obsolete
