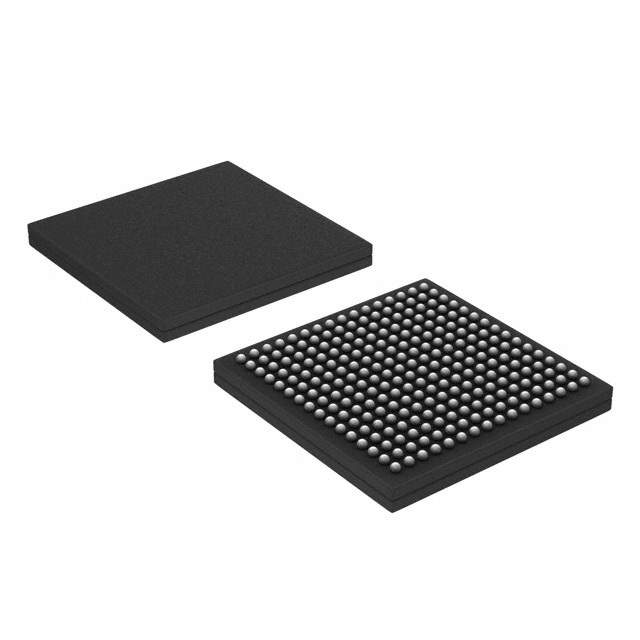

AT94S05AL-25DGC

Part No AT94S05AL-25DGC
Manufacturer Microchip Technology
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPSLIC 5K GATE 25MHZ 256BGA /
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array) with Microcontrollers
Mfr Microchip Technology
Series FPSLIC®
Package Tray
Product Status Obsolete
Core Type 8-bit AVR
Speed 25 MHz
Interface I2C, UART
Program SRAM Bytes 4K-16K
FPGA SRAM 2kb
EEPROM Size 256K x 8
Data SRAM Bytes 4K ~ 16K
FPGA Core Cells 256
FPGA Gates 5K
FPGA Registers 436
Voltage - Supply 3V ~ 3.6V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 70°C
Package / Case 256-LBGA, CABGA
Supplier Device Package 256-CABGA (17x17)
RoHS Status RoHS non-compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Standard Package 40
Win Source Part Number 1046712-AT94S05AL-25DGC
Ultra Librarian 3D Model Ultra Librarian AT94S05AL-25DGC CAD Model

Description

The AT94S05AL-25DGC is a high-performance integrated circuit from Microchip Technology, designed to offer a versatile solution for system-level integration. This device is part of Microchip's FPSLIC™ (Field Programmable System Level Integrated Circuit) family, which combines the flexibility of programmable logic with the power of a high-speed microcontroller.

Key Features:

  • Integrated AVR® Microcontroller: At the heart of the AT94S05AL-25DGC is an 8-bit AVR microcontroller that provides robust processing capabilities with low power consumption. This enables efficient handling of complex algorithms and control tasks.
  • Programmable Logic: The device includes a field-programmable gate array (FPGA) section, which allows for custom logic design and real-time system modifications, enabling designers to tailor the chip to specific application needs.
  • High-Speed Operation: With an operational speed of 25MHz, this component ensures swift data processing and responsiveness, making it suitable for high-performance applications.
  • Memory Resources: It comes with on-chip memory resources, including SRAM and EEPROM, which support efficient data storage and retrieval without the need for additional external memory components.
  • Peripheral Support: The AT94S05AL-25DGC offers a range of built-in peripherals such as timers, counters, and communication interfaces, which facilitate the development of complex embedded systems.
  • Power Efficiency: Designed with power efficiency in mind, this product is ideal for battery-operated devices or applications where power conservation is critical.
  • Package: The device is available in a 144-pin TQFP (Thin Quad Flat Pack) package, providing a compact footprint for space-constrained applications.

Applications:

The versatility of the AT94S05AL-25DGC makes it suitable for a wide range of applications, including industrial control systems, automotive electronics, communication devices, and consumer electronics. Its ability to be reprogrammed on the fly adds to its adaptability, allowing for updates and changes without the need for hardware replacements.

Overall, the AT94S05AL-25DGC from Microchip Technology is a powerful and flexible solution for designers looking to integrate multiple functions into a single chip, streamlining the design process and reducing overall system costs.
