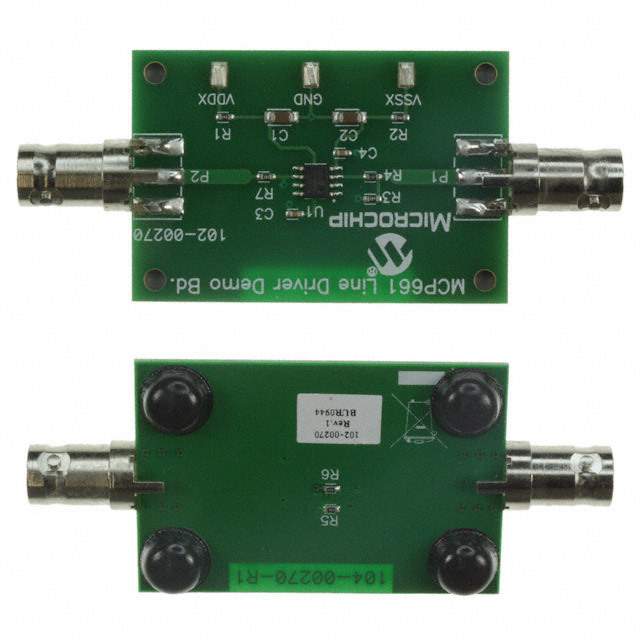

Microchip Technology's MCP661DM-LD High-Speed Operational Amplifier

The MCP661DM-LD from Microchip Technology is an advanced high-speed operational amplifier designed to address the need for swift signal processing in a variety of applications. This operational amplifier boasts a high slew rate and bandwidth, making it an ideal choice for data acquisition systems, test equipment, and high-speed communication systems.

With a dynamic performance, the MCP661DM-LD offers a slew rate of 410 V/μs and a gain bandwidth product of 65 MHz. This makes it highly suitable for driving large capacitive loads with excellent linearity, while maintaining the integrity of the signal. The operational amplifier operates from a single supply voltage ranging from 2.5V to 5.5V, providing flexibility in various power environments and ensuring compatibility with both analog and digital power rails.

Furthermore, the MCP661DM-LD features a low quiescent current, which is a crucial attribute for power-sensitive applications. This enables the device to be used in portable and battery-powered devices without significantly impacting the overall power consumption. The quiescent current is just 3.6 mA, typical at 5V, which helps to extend battery life in portable applications.

The operational amplifier is also equipped with chip select (CS) functionality, which allows multiple devices to share the same bus or filter network while minimizing power consumption and reducing system noise when the amplifier is not in use. This feature is particularly useful in multiplexed systems or when multiple amplifiers are used in parallel.

Designed with robustness in mind, the MCP661DM-LD can handle input signals that may extend beyond the supply rails without damage or phase reversal, thanks to its input over-voltage protection. This makes it more resilient to abnormal operating conditions and enhances system reliability.

Encased in a compact 8-pin MSOP package, the MCP661DM-LD is a practical solution for space-constrained applications, providing high-speed performance without compromising on space or power efficiency. Whether it's for amplifying fast transient signals or driving A/D converters, this operational amplifier from Microchip Technology is engineered to deliver precision and speed.

Overall, the MCP661DM-LD is a testament to Microchip Technology's commitment to providing high-performance, reliable, and versatile components for the modern electronics industry.
