Same model may have multiple batches, images only for reference.

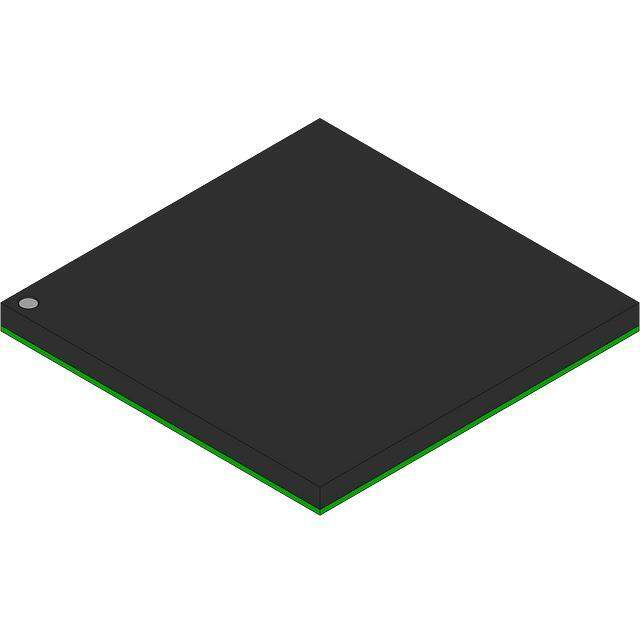

EPXA1F484C2 Real Image
Same model may have multiple batches, images only for reference.

EPXA1F484C2

Part No EPXA1F484C2
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description LOADABLE PLD, PBGA484  /
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array) with Microcontrollers
Mfr Altera
Series Excalibur™
Package Tray
Product Status Obsolete
Core Type 32-Bit ARM9
Speed 200 MHz
Interface EBI/EMI, UART/USART
Program SRAM Bytes 32K
Data SRAM Bytes 16K
FPGA Core Cells 4160
FPGA Gates 100K
Voltage - Supply 1.8V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C
Package / Case 484-BBGA
Supplier Device Package 484-FBGA (23x23)
RoHS Status RoHS non-compliant
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Names ALTALTEPXA1F484C2,2156-EPXA1F484C2-AL
Standard Package 20
Win Source Part Number 1221825-EPXA1F484C2
Ultra Librarian 3D Model Ultra Librarian EPXA1F484C2 CAD Model

Description

The Altera EPXA1F484C2 is a member of the Excalibur™ series of embedded FPGAs with microcontrollers from Altera.

  • Core Type: 32-bit ARM9
  • FPGA Core Cells: 4160
  • FPGA Gates: 100K
  • Program SRAM Bytes: 32K
  • Data SRAM Bytes: 16K
  • Package: 484-BBGA
  • Voltage Supply: 1.8V
  • Operating Temperature: 0°C to 85°C
  • Popularity: Low
