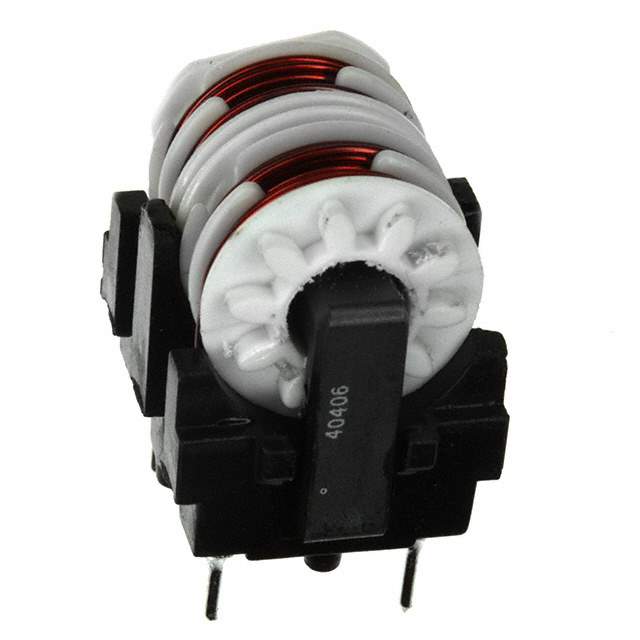

7448640406 Real Image
Same model may have multiple batches, images only for reference.

7448640406

Part No 7448640406
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 820UH 2A 2LN TH
Datasheet
7448640406 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-FC
Package Tray
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 820 µH @ 10 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 70mOhm (Typ)
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.835" L x 0.654" W (21.20mm x 16.60mm)
Height (Max) 0.886" (22.50mm)
Package / Case Vertical, 4 PC Pin
Standard Package 120 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857622-7448640406
Ultra Librarian 3D Model Ultra Librarian 7448640406 CAD Model

Description

The WE-FC series is a common mode choke designed for power line filtering applications.

  • Voltage Rating: 250V AC
  • Current Rating: 2A
  • Size: 0.835" L x 0.654" W (21.20mm x 16.60mm)
  • Height: 0.886" (22.50mm)
  • Inductance: 820 µH @ 10 kHz
  • DC Resistance: 70mOhm
  • Mounting Type: Through-hole
  • Package: Vertical, 4 PC pin
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: Wurth Electronics Inc
  • Package Quantity: 120 pcs
